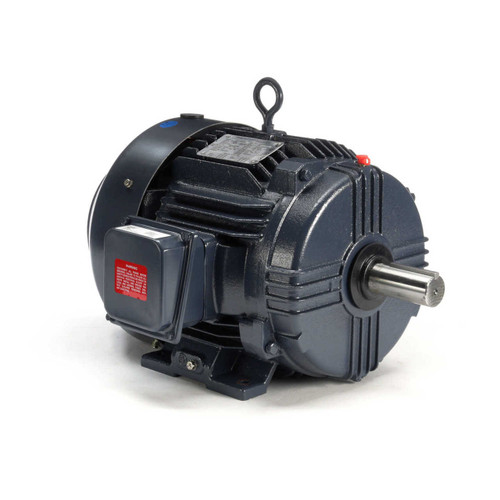

GT1015A Marathon 7.5 hp 3600 RPM 213T Frame 230/460V TEFC Marathon Electric Motor

GT1015A Marathon 7.5 hp 3600 RPM 213T Frame 230/460V TEFC Marathon Electric Motor

The GT1015A is a general-purpose, three-phase electric motor designed for various industrial applications. It replaces Leeson models 170158.60, B199009.00, 199009.00, G150122.60, C213T34FB1A, 140756.00, and Dayton 44Z322, ensuring compatibility with existing equipment.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 18.4/9.2 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

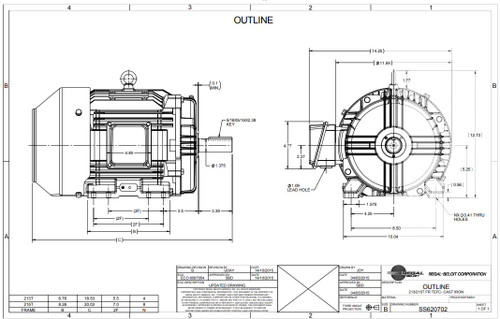

• Frame / Diameter: NEMA 213T Frame
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and a service factor of 1.15, though it does not include overload protection. Wiring diagrams are provided on the motor nameplate to facilitate correct electrical connections.

Cross Reference

• Leeson 170158.60, B199009.00, 199009.00, G150122.60
• Replaces Leeson C213T34FB1A, 140756.00
• Dayton 44Z322

Warranty

1 Year Manufacturer Warranty
