sale
Marathon
GT1315A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT1315A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
$1,135.28
$838.35
SKU
GT1315A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
7-1/2 HP
RPM
3600
Phase
Three Phase
Frame
213TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
18.4/9.2 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
C-Face
GT1315A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
The GT1315A is a general-purpose, three-phase electric motor designed for applications requiring a 7.5 hp motor with a C-face mount. It replaces Leeson 171852.60 and G151345.60 models and is suitable for driving pumps, gear heads, and other industrial equipment.
Key Specifications
- Horsepower: 7.5 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 18.4/9.2 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 213TC
- Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a round body design without a base and includes a C-face mount with threaded bolt holes for easy attachment of pumps or gear heads. The shaft has a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward installation.
Cross Reference
- Leeson 171852.60, G151345.60
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 7-1/2 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 213TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 18.4/9.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | C-Face |
- Leeson 171852.60, G151345.60
Related Products
sale
Add to Cart
The item has been added
GT1215A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
GT1215A Marathon 7.5 hp 3600 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
The GT1215A is a general-purpose, three-phase electric motor designed for industrial...
$1,022.70
$838.35
sale
Add to Cart
The item has been added
GT1316A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1316A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
This Marathon electric motor delivers 7.5 horsepower at 1800 RPM and is designed for three-phase...
$975.09
$834.90
sale
Add to Cart
The item has been added

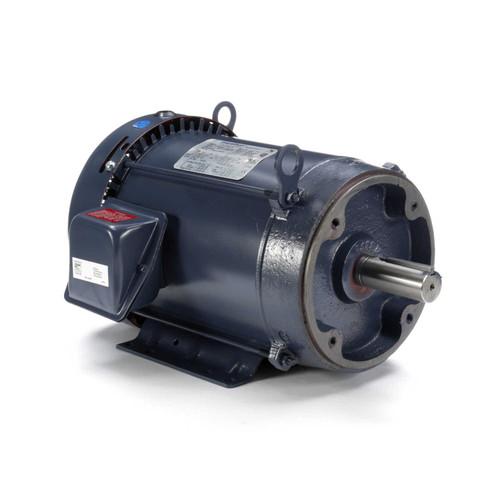

GT1216A Marathon 7.5 hp 1800 RPM 213TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
