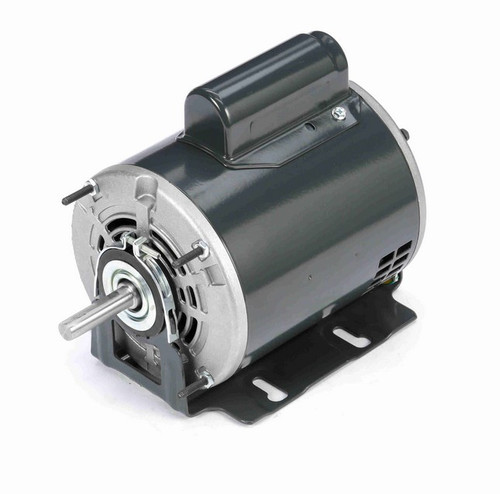

B312 Marathon 1/4 hp (1 speed) 115/208-230V 1800 RPM ODP 48Z Frame Cap Start Resilient Base Motor
(No reviews)
Write a Review
Write a Review
Marathon
B312 Marathon 1/4 hp (1 speed) 115/208-230V 1800 RPM ODP 48Z Frame Cap Start Resilient Base Motor
$322.69
$278.53
SKU
MB312
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/4 HP
RPM
1800
Frame
48Z
Enclosure
ODP
Hertz
60 Hz
Amperage
2.8 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
- 1/4 hp 1800 RPM, 6.2/3.1-2.8 amps, 115/208-230 Volts 60 Hz, Capacitor Start
- NEMA 48Z Frame Keyed Shaft 1 7/8" x 1/2" Diameter, 1 speed
- Service Factor = 1.35, Thermal Protection = None
- Resilient Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. ODP = Open Drip Proof. 048C17D2041
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/4 HP |
| RPM | 1800 |
| Frame | 48Z |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 2.8 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
