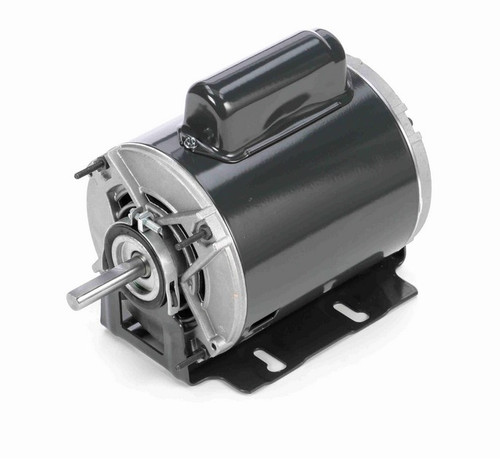

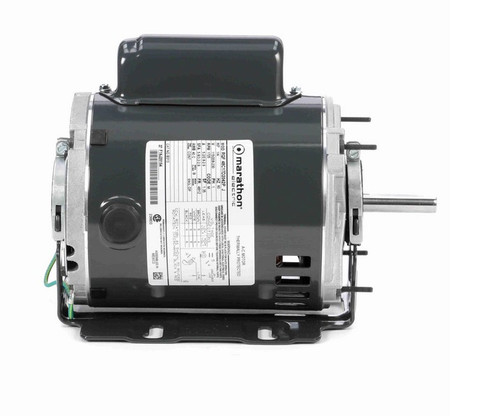

B313 Marathon 1/4 hp (1 speed) 115/208-230V 1800 RPM ODP 48Y Frame Cap Start Resilient Base Motor

B313 Marathon 1/4 hp (1 speed) 115/208-230V 1800 RPM ODP 48Y Frame Cap Start Resilient Base Motor

This Marathon 1/4 horsepower motor is designed for blower applications, providing reliable air movement in residential or commercial HVAC systems. It is a direct replacement motor suitable for installations requiring a single-speed, capacitor start motor with a resilient base.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 5.2 / 2.8 - 2.6 amps
• Enclosure: Open Drip Proof (ODP)

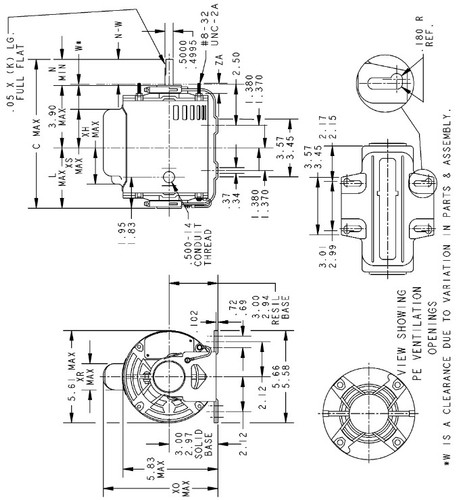

• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: Keyed Shaft, 2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start design with a service factor of 1.35 and automatic thermal protection for enhanced durability. It is mounted on a resilient base for vibration reduction and can be installed with the shaft oriented vertically or horizontally, depending on the blower application requirements.

Warranty

1 Year Manufacturer Warranty
