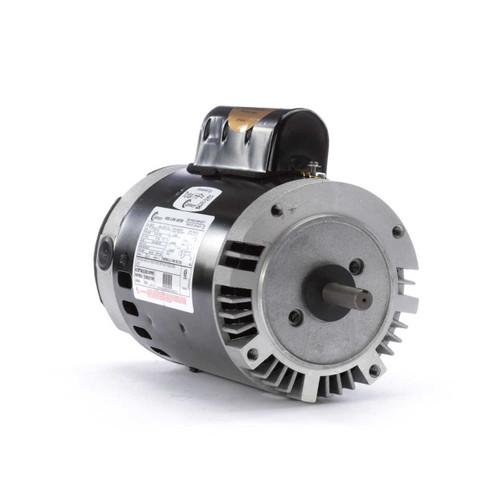

Century 56C Full Rate, High Service Factor Pump Motor
Energy Efficient Two Speed Motor
- 3/4 HP 3450/1725 RPM - High/Low Speed
- 11.2/5.0 amps, 115V 60hz
- Automatic Overload Protection - Service Factor 1.50
- Non-Reversible - CCW Rotation facing the shaft
- 56C Frame size
- C-Face Mount, Round Body-no base
- 5/8" diameter shaft with Keyway - Non Treaded
- 1 year warranty
Jet Pump and pool pump motor.
Sealed ball bearings.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft.
Wiring diagram on motor name plate.
Century Part No. 7-177057-04, 177057
Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect.
Please check your local and State codes to comply with their requirements for replacement pump motors.
Click here to help answer more questions
ATTENTION: Shipping Restrictions Apply!
California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.
New York: New York State Energy Research and Development Authority (NYSERDA) Section 509.23 has adopted the same standards as the State of California Title 20 laws. This pump/motor fails to meet these new regulations. Consequently, shipping this pump/motor to New York is illegal and violates state law. Should an order for this item be placed with a New York shipping address, we will be forced to cancel the order.
Familiarize yourself with the laws and building codes in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
