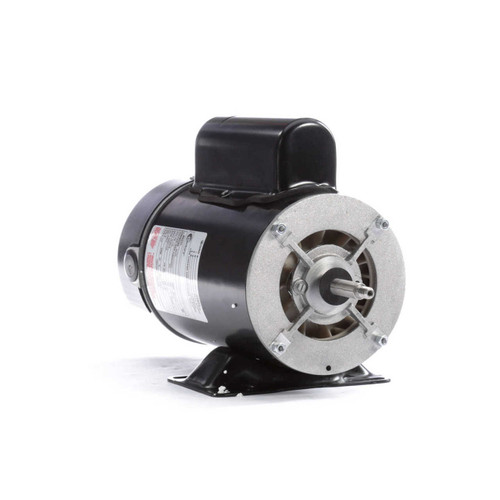

Above ground swimming pool and spa motor
- 1 HP 115 Volts 11.8 amps 60hz.
- 3450 RPM - SINGLE SPEED
- Auto Overload Protection
- Non-Reversible - CCW Facing the Shaft
- Stainless Steel Shaft
- Ball Bearings
- 48Y Frame; Thru-Bolt mount -Rigid Base
- One Year Manufacture Warranty
These are called Thru-Bolt mount motors, as the pump mounts to the face of the motor with the motor thru bolts.
48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end.
Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate.
These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps.
Replaces AO Smith/Century BN25, BN25SS, S48AA11A01
US Electric Motor Equivalent EZBN25
Dayton 6PWA4
Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect.
Please check your local and State codes to comply with their requirements for replacement pump motors.
Click here to help answer more questions
ATTENTION: Shipping Restrictions Apply!
California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.
New York: New York State Energy Research and Development Authority (NYSERDA) Section 509.23 as adopted the same standards as the State of California Title 20 laws. This pump/motor fails to meet these new regulations. Consequently, shipping this pump/motor to New York is illegal and violates state law. Should an order for this item be placed with a New York shipping address, we will be forced to cancel the order.
Familiarize yourself with the laws and building codes in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
