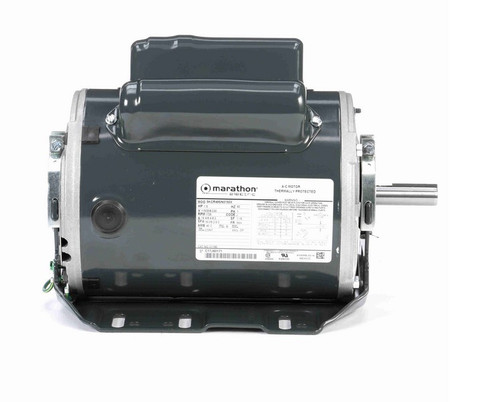

C1160 Marathon 1 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
(No reviews)
Write a Review
Write a Review
Marathon
C1160 Marathon 1 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
$577.53
$469.95
SKU
MC1160
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/2 HP
RPM
1800
Frame
56H
Enclosure
ODP
Hertz
60 Hz
Amperage
8.2 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
C1160 Marathon 1 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor
This Marathon 1 1/2 horsepower motor is designed for blower applications in HVAC systems, providing reliable air movement inside buildings. It features a capacitor start and run design for higher starting torque and improved efficiency, suitable for replacing similar 56H frame motors.
Key Specifications
- Horsepower: 1 1/2 hp
- RPM: 1800
- Voltage: 115/208-230V, 60 Hz
- Amperage: 16.4/8.4-8.2 amps
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56H Frame
- Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor includes a resilient base for stable mounting and is designed for single-speed operation. It incorporates thermal auto-protection and Class B insulation for durability. The shaft orientation can be either vertical or horizontal, allowing flexible installation options in various blower setups.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Frame | 56H |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 8.2 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
