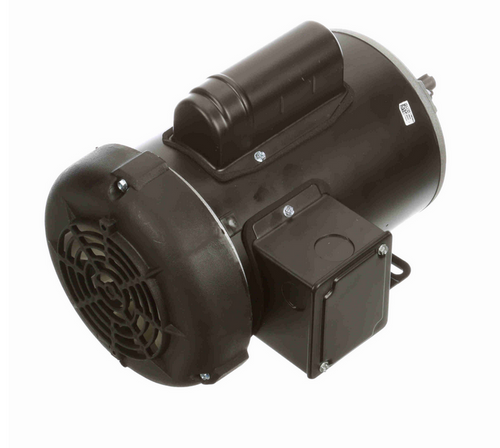

C685V1 Century 1 hp 1800 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V

SKU:: C685V1
UPC:
Availability:: If Out of Stock, See Replacement Marathon # C276
Weight:: 37.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 16.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 6.0 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Mounting:: Rigid Base

Current Stock:

Was: $598.58

Now: $507.27

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

C685V1 Century 1 hp 1800 RPM 1-Phase 56 Frame TEFC (rigid base) 115/208-230V

The C685V1 is a general-purpose 1 horsepower, single-phase motor designed for a variety of industrial and HVAC applications. It replaces Century/AO Smith C685 models and features a rigid base mount for stable installation.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 115/208-230 V, 60 Hz
Amperage: 12.0/6.2-6.0 A
Enclosure: Totally Enclosed Fan-Cooled (TEFC)
Frame / Diameter: NEMA 56 frame
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

This motor features a capacitor start and induction run design with a service factor of 1.15 and automatic overload protection. It is equipped with Class B insulation and includes a wiring diagram on the motor nameplate for easy installation. The rigid base mount provides a secure and stable setup suitable for general-purpose use.
