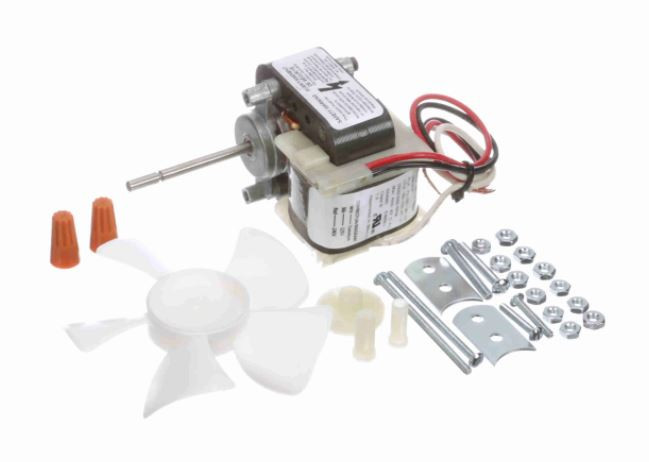

Century C-Frame Vent Fan Motors
Sometimes called Skeleton Motors
  • Mounting: 2 Studs from opposite shaft end
  • Two 9/64" diameter mounting holes on each side of stator 1 7/8 on center
  • Sleeve Bearings unless otherwise indicated
  • Continuous Duty
  • Class B Insulation, 60hz.

C-Frame motors are mechanically reversible by removing the 2 screws holding the bearing housings together
and reversing the rotor/shaft assembly. Studs can also be reversed to the other side.

!
