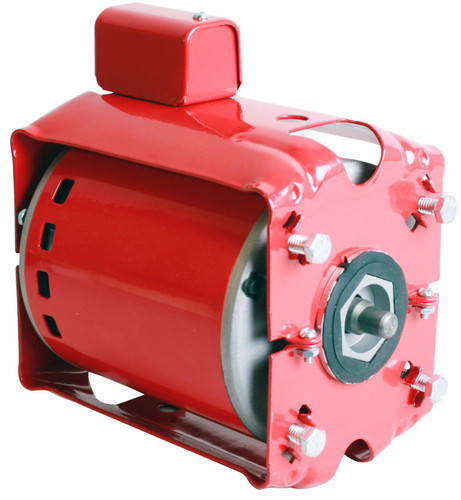

CP-R1350 | 1/12 hp 1725 RPM 115V Bell & Gossett (111034) Circulator Pump Replacement Motor

CP-R1350 | 1/12 hp 1725 RPM 115V Bell & Gossett (111034) Circulator Pump Replacement Motor

This is a low-cost, aftermarket replacement motor designed for Bell & Gossett and Armstrong circulator pumps. It is ideal for hot water boiler and booster pump applications, providing reliable performance as a substitute for Bell & Gossett model 111034 and Armstrong pump S-25.

Key Specifications

• Horsepower: 1/12 hp
• RPM: 1725
• Voltage: 115V
• Amperage: 2.2 amps
• Shaft Dimensions: 1/2" diameter x 1/2" length
• Rotation: Clockwise shaft end

Product Features & Fitment

This motor features a maintenance-free bushing that requires no oiling, simplifying upkeep. The bolt circle measures 4.63" diagonally with a 1/4" bolt thread size, ensuring compatibility with specified pump models. It is manufactured by Rotom as an aftermarket replacement; users should verify specifications against their existing motor before installation.

Suggested replacement references include Bell & Gossett 111034 (Fits Pump 100 series), Armstrong 805316-010 and 831000-61 (Fits Armstrong Pump S-25), Pro-Fit Part # MOT-A-100S, and Century Equivalent HW20084BL. Compatible replacement parts include Coupler #806026-001 and Bearing Assembly #S-25. Note that the motor nameplate may indicate CP-R1340, which is the same motor.

Cross Reference

• Bell & Gossett 111034, Fits Pump 100 (75-100)
• Armstrong 805316-010, 831000-61, Fits Armstrong Pump S-25
• Pro-Fit Part # MOT-A-100S
• Century Equivalent = HW20084BL
• Replaces: M09180, M09181, M09182, M09186, MOT101-5, MOT112-5, MOT113-5, MOT132-5, MOT133-5, P-115Z-3
• Motor name plate may indicate CP-R1340, it is still the same motor

Warranty

1 Year Manufacturer Warranty
