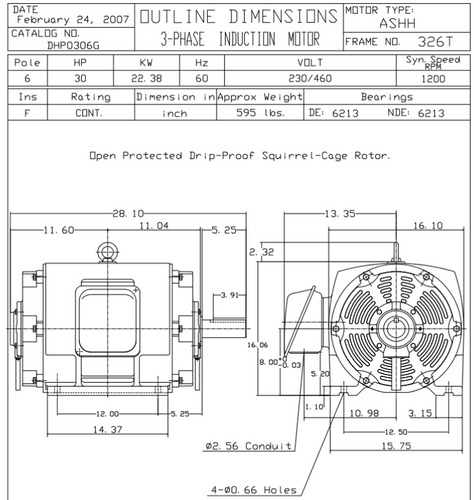

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 30 hp 1200 RPM, 71.9/35.9 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 326T Frame, 5 1/4 x 2 1/8" Dia. Keyed Shaft
- Cast Iron Frame, Open Drip Proof
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
General purpose SGR motor for use on pumps, fans, and compressors. The SGR bearing protection ring resists bearing damage by diverting stray electric currents to ground.
