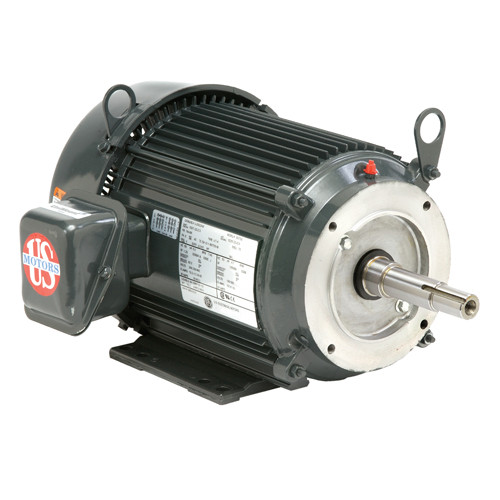

DJ5P1HM US Motors 5 hp 3600 RPM 3-phase 182JM Frame 200V (ODP) Close-Coupled Pump Motor
DJ5P1HM US Motors 5 hp 3600 RPM 3-phase 182JM Frame 200V (ODP) Close-Coupled Pump Motor

US Motors

DJ5P1HM US Motors 5 hp 3600 RPM 3-phase 182JM Frame 200V (ODP) Close-Coupled Pump Motor

(No reviews) Write a Review
$580.75
$518.77
SKU DJ5P1HM
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 182JM
Enclosure ODP
Hertz 60 Hz
Amperage 14.1 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 HP 3600 RPM, 14.1 amps, 200V 60hz. 3 Phase.
  • NEMA 182JM Rolled Steel Frame with cast aluminum end-shields, JM stainless steel shaft
  • 1.15 Service Factor, Auto Overload Thermal Protection, Class F insulation
  • Reversible Rotation, Open Drip Proof (ODP)
  • Rigid Base, Ball Bearings,

Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. ODP = Open Drop Proof, Proof, FN38

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 200V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 182JM
Enclosure ODP
Hertz 60 Hz
Amperage 14.1 Amps
Bearings Ball Bearings
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
!
