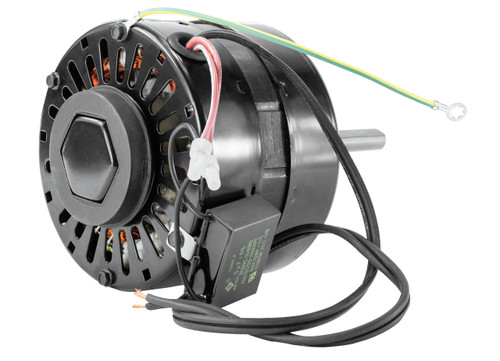

FASCO D156 Direct OEM Aftermarket Replacement 1/6 hp 1050 RPM CW 5" Diameter 115V Direct Drive Furnace Motor

FASCO D156 Direct OEM Aftermarket Replacement 1/6 hp 1050 RPM CW 5" Diameter 115V Direct Drive Furnace Motor

This direct OEM aftermarket replacement motor is designed to replace the discontinued FASCO D156 furnace motor. Manufactured by PEMS, it is ideal for use in HVAC systems requiring a reliable, energy-efficient direct drive motor.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1050
• Voltage: 115V, 60 Hz
• Amperage: 2.5 amps
• Enclosure: Open Ventilation - Air Over
• Frame / Diameter: 5 inch
• Shaft Dimensions: 1/2" diameter x 3 7/8" length
• Rotation: Clockwise (CW) shaft end
• Bearings: Sleeve Bearings

Product Features & Fitment

This PSC style motor features a resilient ring mount and supports belly band or stud mounting with a bolt circle of 4.62". The motor length excluding the shaft is 3 1/2", which is slightly shorter than the original, so verify base fitment if using a base. Belly band brackets such as the Torsion Flex Bracket # FM50 are available for installation. Cross references include 7151-0127, 326P208, and BL6412.

Cross Reference

• 7151-0127, 326P208, BL6412

Warranty

1 Year Manufacturer Warranty
