HD15P4E Nidec | 15 hp 900 RPM 286T Frame 230/460V TEFC Nidec Electric Motor
HD15P4E Nidec | 15 hp 900 RPM 286T Frame 230/460V TEFC Nidec Electric Motor
HD15P4E Nidec | 15 hp 900 RPM 286T Frame 230/460V TEFC Nidec Electric Motor
HD15P4E Nidec | 15 hp 900 RPM 286T Frame 230/460V TEFC Nidec Electric Motor

Nidec

HD15P4E Nidec | 15 hp 900 RPM 286T Frame 230/460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$2,993.45
$2,672.83
SKU HD15P4E
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 15 HP
RPM 900
Phase Three Phase
Frame 286T
Enclosure TEFC
Amperage 42.0/20.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 15 hp 900 RPM, 42.0/20.9 amps 230/460 Volts Three Phase Motor
  • NEMA 286T Frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

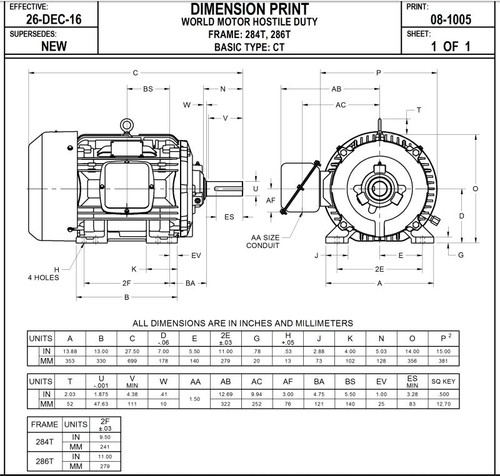

  • "C" Dimension = 27.5"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GA75

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 15 HP
RPM 900
Phase Three Phase
Frame 286T
Enclosure TEFC
Amperage 42.0/20.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
