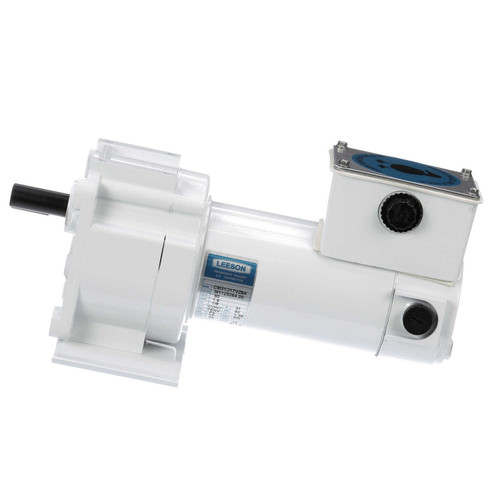

- 1/8 hp, 94 RPM, 1.60 amps, 90 Volts DC
- Gear Ratio = 29
- Torque 77 inch pounds
- Over Hung Pounds = 237
- Shaft 5/8" x 1.5"; Rotation = Reversible
- TENV = Totally Enclosed Non Ventilated
- Wash Down Duty
- Class F Insulation; Service Factor 1.0
- Keyed Shaft, Ball Bearings
- One Year Manufacture Warranty.
Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174107, 174102
CM31D17VZ8A, M1125264.00
