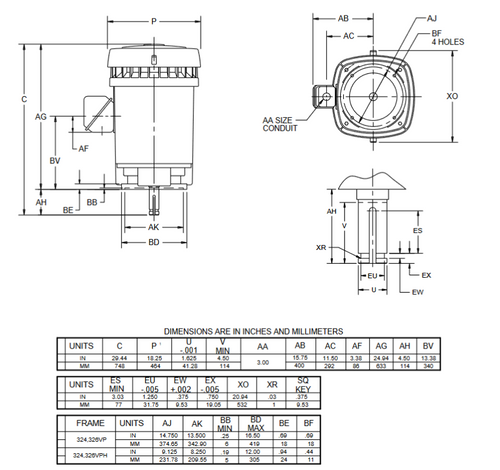

NO40P2BG Nidec 40 hp WPI 1800 RPM 230/460V 3-phase 324VP Frame TEFC Vertical Solid Shaft Motor

NO40P2BG Nidec 40 hp WPI 1800 RPM 230/460V 3-phase 324VP Frame TEFC Vertical Solid Shaft Motor

SKU:
NO40P2BG
Availability:
Subject to Availability
Weight:
635.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $5,586.00
Now: $4,987.80
Adding to cart… The item has been added
  • 40 HP 1800 RPM, 90.0/45.0 amps, 230/460V 60 Hz. 3 Phase
  • NEMA 324VP Frame, RVS type, 16 1/2" Dia. Base, TEFC
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, Normal Thrust


Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, All cast iron construction, Inverter Duty. 1 Year Manufacture Warranty. FK21

!
