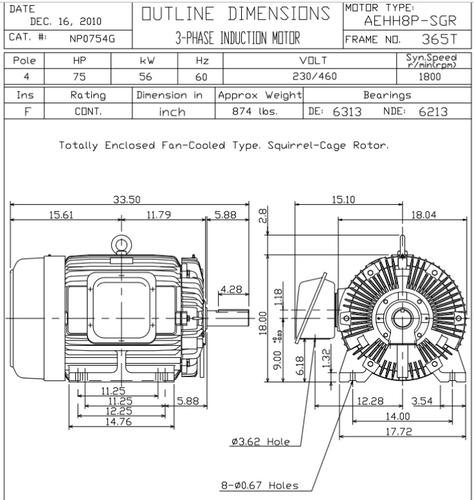

NP0754G TECO-Westinghouse 75 hp 1800 RPM 365T 230/460V TEFC Severe Duty SGR 3-Ph Motor

SKU:
NP0754G
Weight:
924.00 LBS
Shipping:
Calculated at Checkout
$5,604.07
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 75 hp 1800 RPM, 170/85.1 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 365T Frame, 5 7/8 x 2 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

For use in electrically risky environments. It uses an SGR bearing protection ring to divert harmful voltages from the bearing.
