Pool & Spa Motors

3 HP 3450 RPM, 16.0-14.8 amps, 208-230V 60hz. Switchless single phase NEMA 56J frame (no base), 5/8" diameter threaded stainless steel shaft Overload Protection: Auto. Class B insulation, 6.5" body dia. Service Factor: 1.2, Non-Reversible - CCW Rotation...

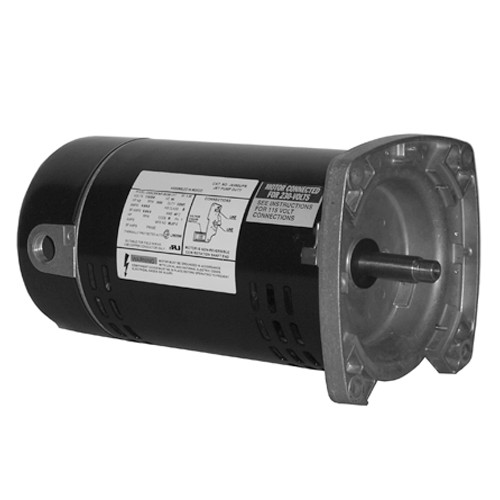

1/3 HP 3450 RPM 56J, 8.4/4.2 amps, 115/230V 60hz. Capacitor Start NEMA 48Y frame (no base), 1/2" diameter threaded stainless steel shaft 1.95 Service Factor, Auto Overload Thermal Protection, Class B insulation Non-Reversible, CCW Rotation facing...

1/2 HP 3450 RPM 48Y, 8.4/4.2 amps, 115/230V 60hz. Capacitor Start NEMA 48Y frame (no base), 1/2" diameter threaded stainless steel shaft 1.9 Service Factor, Auto Overload Thermal Protection, Class B insulation Non-Reversible, CCW Rotation facing...

3/4 HP 3450 RPM 48Y, 11.6/5.8 amps, 115/230V 60hz. Capacitor Start NEMA 48Y frame (no base), 1/2" diameter threaded stainless steel shaft 1.65 Service Factor, Auto Overload Thermal Protection, Class B insulation Non-Reversible, CCW Rotation facing...

2 HP 3450 RPM 48Y, 8.6 amps, 115/230V 60hz. Capacitor Start NEMA 48Y frame (no base), 1/2" diameter threaded stainless steel shaft 1.3 Service Factor, Auto Overload Thermal Protection, Class B insulation Non-Reversible, CCW Rotation facing shaft Square...

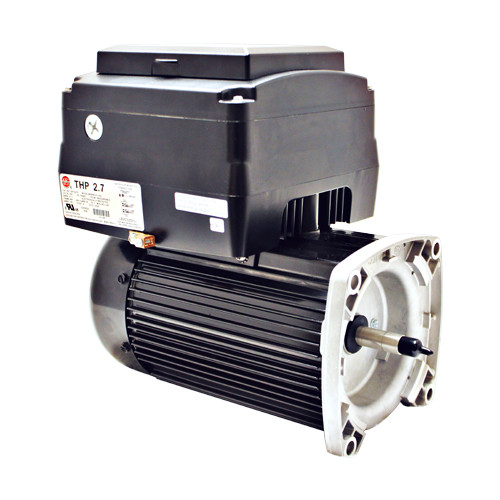

Total Horsepower:  2.25 RPM:  600-3450 Voltage:  230V Frequency:  50/60 Hz SF Amps:  9.5 System Efficiency:  81% Motor Frame:  48Y Length Less Shaft:  10.98" The Neptune™ variable speed pool pump motor is a...
