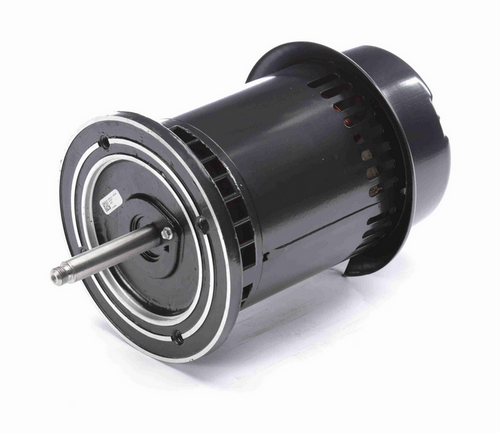

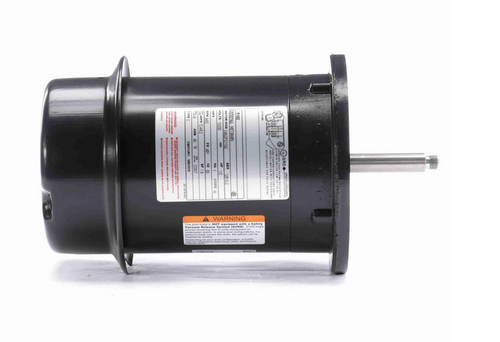

R1052 Century 1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor # R1052

R1052 Century 1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 115/230V Century Jet Pump Motor

This Century jet pump motor is a direct replacement for Sta-Rite pool and spa pumps requiring a single-phase electric motor with a round-flange design. It is engineered for reliable performance in jet pump applications and replaces the Sta-Rite A200CH model.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/230 V
• Amperage: 12.4/6.2 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y frame
• Shaft Dimensions: 1/2" diameter x 1 1/2" length, threaded stainless steel
• Rotation: Counterclockwise (CCW) pump end
• Bearings: Ball bearings

Product Features & Fitment

This motor features a capacitor start and an auto overload protection system with a service factor of 1.9. It comes without a base and includes a round-flange mounting configuration for easy installation. The wiring diagram is located on the motor nameplate to assist with proper electrical connections.

Cross Reference

• motor for Sta-Rite pool and spa pumps requiring a single phase electric motor with a round-flange. Wiring diagram on motor name plate. ODP = Open Drip Proof. R1052. Replaces Sta-Rite A200CH

Warranty

1 Year Manufacturer Warranty
