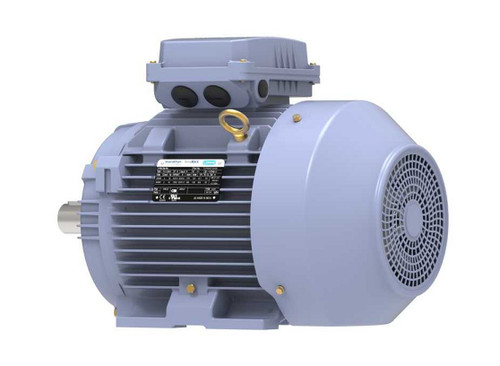

R328A Marathon 7.5 hp 5.5 kw 1800 RPM 132S Frame 230/460V Marathon Electric Metric Motor

R328A Marathon 7.5 hp 5.5 kw 1800 RPM 132S Frame 230/460V Marathon Electric Metric Motor

SKU:
R328A
Weight:
203.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,254.20
Now: $805.00
Adding to cart… The item has been added
  • 7.5 hp 5.5 kw 1800 RPM, 19.6/9.8 amps 230/460 Volts Three Phase Motor
  • IEC 132S Frame keyed shaft 38mm x 80mm
  • TEFC - IP55 Weatherproof Enclosure - Conduit Box Location = F3 (top)
  • Inverter Rated Insulation System (IRIS) - Service Factor: 1.15
  • TEFC = Totally Enclosed Fan Cooled; Class F Insulation
  • 1 Year Manufacture Warranty

12-Lead Delta Windings (160MD frame & larger) for across the line or wye-delta starts. Class F insulation. Oil seals on both drive end and non drive end. Drilled and tapped shaft. CSA file #LR33543, UL file #E57948,Conformite European.

Marathon Model: TCA5P52AE211GAA009
Replaces R328A, 132STFC6526
Replaces Leeson C132T17FZ43A, 193310.60

!
