Fasco A197 Trane Furnace Draft Inducer (7092-0238, 7092-0238S, D342097P01, X38010571010)

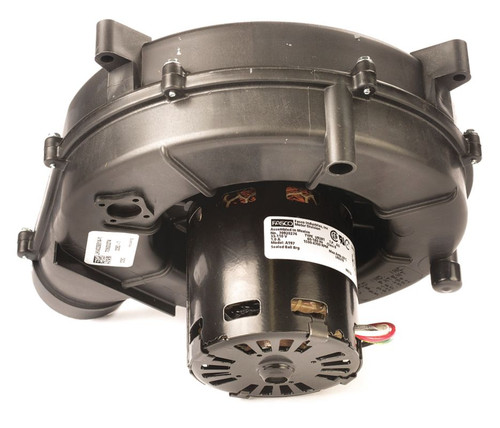

Fasco A197 Trane Furnace Draft Inducer

The Fasco A197 is a variable speed draft inducer designed for Trane furnaces, serving as a reliable replacement for models including Trane D342097P01, X38010571010, Fasco 7092-0238 series, and Dayton 45KC88. It is primarily used to improve furnace flue exhaust performance and ensure efficient combustion air flow.

Key Specifications

• Horsepower: 1/70 hp
• RPM: 1500 - 4700 (Variable Speed)
• Voltage: 33/110 V
• Amperage: 1.0 A
• Rotation: CWSE (Clockwise Shaft End)
• Bearings: Ball Bearings

Product Features & Fitment

This draft inducer features a molded flat plug with four wires (black, red, white, green) for straightforward electrical connections. It operates on a 3-phase power supply with a frequency range of 60-180 Hz. Note that no gasket is included with this unit, so a compatible gasket must be sourced separately during installation.

Warranty

1 Year Manufacturer Warranty
