U5P2DK Nidec 5 hp 1800 RPM 184TCH Frame 208-230/460V TEFC 3-Phase 50/60 Hz Electric Motor

U5P2DK Nidec 5 hp 1800 RPM 184TCH Frame 208-230/460V TEFC 3-Phase 50/60 Hz Electric Motor

This Nidec general-purpose electric motor delivers 5 horsepower with a 1800 RPM speed, designed for a wide range of industrial applications requiring a reliable three-phase power source. It is a direct replacement for motors with a NEMA 184TC frame and a keyed shaft, suitable for various machinery setups.

Key Specifications

• Horsepower: 5 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 13.6-12.2/6.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

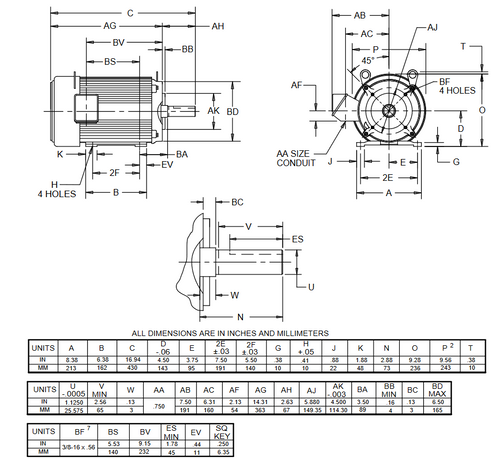

• Frame / Diameter: NEMA 184TC
• Shaft Dimensions: 1 1/8" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It is equipped with Class F insulation and designed for reversible operation. Wiring diagrams are conveniently located on the motor nameplate to assist with proper electrical connections. This motor does not include overload protection and is intended for use in environments compatible with TEFC motors.

Warranty

1 Year Manufacturer Warranty
