UJ7C2K21M Nidec 7 1/2 hp 1800 RPM 1-phase 215JM Frame 230V TEFC Close-Coupled Pump Motor

UJ7C2K21M Nidec 7 1/2 hp 1800 RPM 1-phase 215JM Frame 230V TEFC Close-Coupled Pump Motor

This Nidec close-coupled pump motor is designed for reliable performance in pump applications, featuring a 7 1/2 horsepower rating and single-phase operation. It serves as a direct replacement for motors requiring a 215JM frame and 230V power supply.

Key Specifications

• Horsepower: 7 1/2 hp
• RPM: 1800
• Voltage: 230V
• Amperage: 33.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

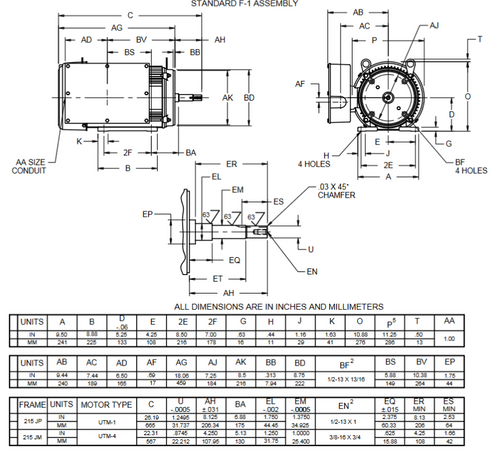

• Frame / Diameter: NEMA 215JM Rolled Steel Frame
• Shaft Dimensions: JM steel shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and is designed for close-coupled pump applications where the pump impeller mounts directly on the motor shaft. It includes Class F insulation and a 1.15 service factor, but does not have built-in thermal protection.

Warranty

1 Year Manufacturer Warranty
