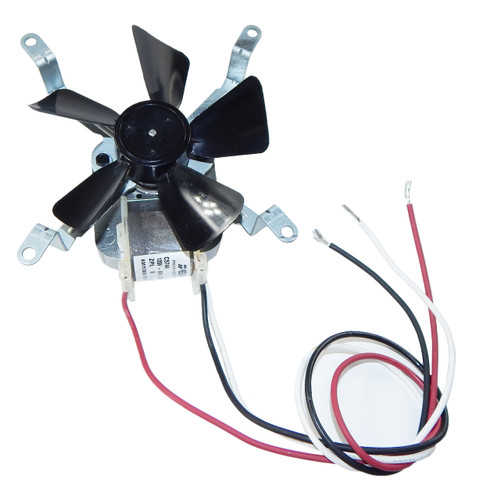

C574A Universal Fireplace Blower Fan 2 Speed 115 Volt

C574A Universal Fireplace Blower Fan 2 Speed 115 Volt

The C574A is a universal fireplace blower fan designed to replace models such as C01574, J574, T1-RF100-2, Electrohome 2811-581-001, EF100M 2811-581-002, and EF100-2. It is ideal for enhancing airflow in fireplace applications with reliable two-speed operation.

Key Specifications

• Voltage: 115 Volt
• Amperage: 0.35 Amps (Low Speed)
• RPM: 3000 (Two Speed)
• Rotation: Clockwise (facing shaft)
• Shaft Dimensions: 5/8" Iron Stack
• Bearings: Sleeve Bearings

Product Features & Fitment

This blower fan includes a mounting bracket with bolt holes spaced approximately 5-7/8" across the shaft for secure installation. The fan blades blow air directly away from the fan, ensuring efficient airflow. It features 6" leads without a plug and incorporates automatic overload protection. Proper installation is critical; avoid positioning the motor where the fan blade could melt to prevent motor failure.

Cross Reference

• C01574, J574, T1-RF100-2, Electrohome 2811-581-001, EF100M 2811-581-002, EF100-2

Warranty

• Dimensional Drawing
