Vector Duty Motors

    75 hp 3600 RPM, 170/85.0 amps 230/460 Volts 60 Hz Three Phase Motor    NEMA 364TS Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 1 7/8" Diameter x 3 3/4"    Service Factor: 1.15 Overload...

    75 hp 1800 RPM, 175.0/87.0 amps 230/460 Volts 60 Hz Three Phase Motor    NEMA 365T Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 2 1/8" Diameter x 5 1/4"    Service Factor: 1.15 Overload...

7 1/2 hp 3600 RPM, 18.1/9.1 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 184T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

7 1/2 hp 1800 RPM, 18.5/9.3 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 213T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

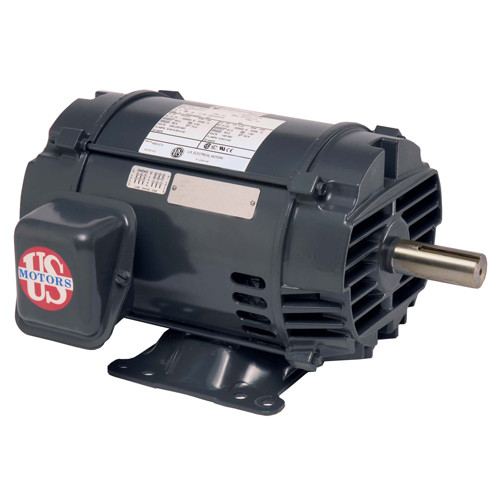

7 1/2 hp 1200 RPM, 18.9/9.5 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 254T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 5/8" Diameter x 4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

2 hp 1800 RPM, 5.5/2.8 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 145TC Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F Insulation,...

1 1/2 hp 3600 RPM, 3.9/1.9 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 143TC Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

10 hp 1200 RPM, 24.9/12.4 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 256T Cast Iron Frame, Keyed Shaft 1 5/8" Diameter x 4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F Insulation, Reversible 1 Year...

1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 143TC Cast Iron Frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F Insulation, Reversible 1 Year...

1 hp 1200 RPM, 3.7/1.8 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 145TC Cast Iron Frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F Insulation, Reversible 1 Year...

20 hp 3600 RPM, 46.0/23.0 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 256T Cast Iron Frame, Keyed Shaft 1 5/8" Diameter x 4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F Insulation, Reversible 1 Year...

2 hp 3600 RPM, 5.0/2.5 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 145TC Cast Iron Frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F Insulation, Reversible 1 Year...
