WD2S1ACR Nidec 2 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Washdown Motor
WD2S1ACR Nidec 2 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Washdown Motor
WD2S1ACR Nidec 2 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Washdown Motor
WD2S1ACR Nidec 2 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Washdown Motor

Nidec

WD2S1ACR Nidec 2 hp 3600 RPM 56C Frame (No Base) 208-230/460V TEFC 3-Phase Washdown Motor

(No reviews) Write a Review
$747.50
$667.69
SKU WD2S1ACR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 2 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 5.4/2.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 2 hp 3600 RPM, 6.0-5.4/2.7 amps  208-230/460 Volts 60 Hz Three Phase Motor

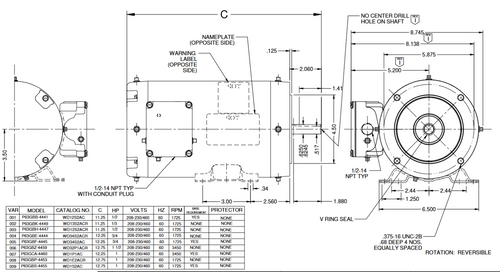

  • NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Easy cleaning painted wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. P063GCL4470015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 2 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 5.4/2.7 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
