WDS10P2AC Nidec 10 hp 1800 RPM 215TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

WDS10P2AC Nidec 10 hp 1800 RPM 215TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

SKU:
WDS10P2AC
Weight:
128.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $2,321.00
Now: $2,072.00
Adding to cart… The item has been added
  • 10 hp 1800 RPM, 26.5-23.8/11.9 amps 208-230/460 Volts 60 Hz Three Phase Motor

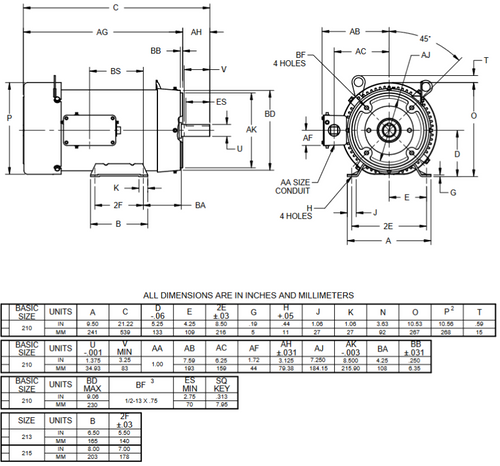

  • NEMA 215TC Rolled Steel Frame, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

All Stainless Steel wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. FB21

!
