110492.00 Leeson | 1/2 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

110492.00 Leeson | 1/2 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

This Leeson 1/2 horsepower farm duty motor is designed for heavy-duty applications where exposure to dust, dirt, oil, and other contaminants is common. It is ideal for replacing or upgrading motors in agricultural and industrial machinery requiring reliable, high-torque performance.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1725
• Voltage: 115/230 Volts, 60 Hz
• Amperage: 8.8/4.4 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

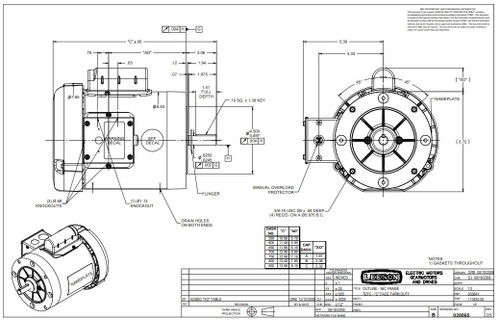

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease, suitable for -20°F to +350°F

Product Features & Fitment

This round body motor features a standard NEMA "C" face mount without a rigid base, facilitating straightforward installation in compatible equipment. It includes manual overload protection with a rubber boot-covered reset button for added durability. The motor’s gasketed junction box and capacitor covers enhance protection against environmental contaminants, making it well-suited for demanding farm and industrial environments.

Warranty

1 Year Manufacturer Warranty
