110493.00 Leeson | 3/4 hp 1725 RPM 56C Frame (Farm Duty) 115/230 Volts

110493.00 Leeson 3/4 hp 1725 RPM 56C Frame (Farm Duty) Motor

This Leeson 3/4 hp, 1725 RPM farm duty motor is designed for heavy-duty applications exposed to harsh environments such as sawdust, dirt, and oil. It replaces standard motors where enhanced durability and protection are required, making it ideal for agricultural and industrial machinery.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/230 Volts
• Amperage: 10.8/5.4 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)

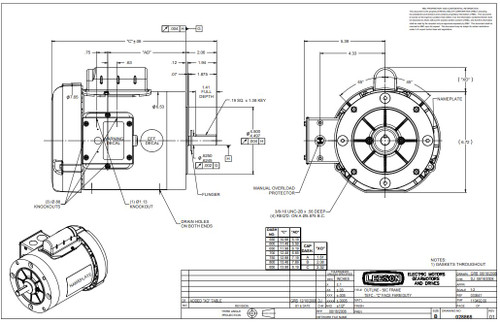

• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease for -20°F to +350°F temperature range

Product Features & Fitment

This round body motor features a standard NEMA "C" face mount without a rigid base, facilitating straightforward installation in compatible equipment. It includes manual overload protection with a rubber boot-covered reset button for added durability. The motor’s gasketed junction box and capacitor covers provide extra protection against contaminants, ensuring reliable operation in demanding farm and industrial environments.

Warranty

1 Year Manufacturer Warranty
