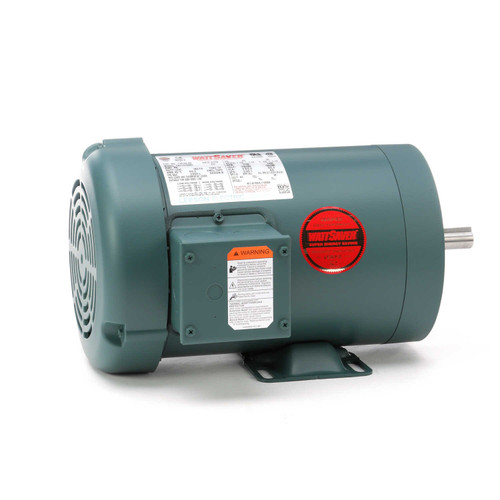

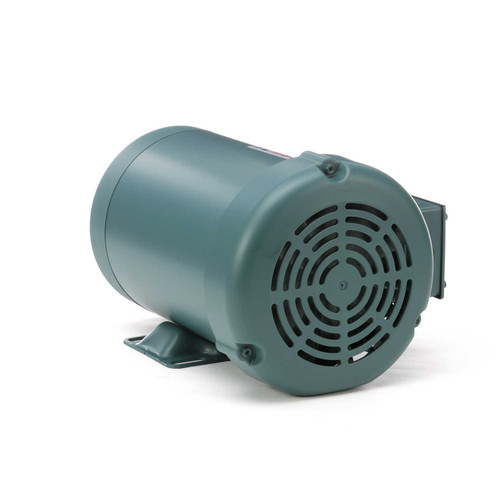

1.5 hp 1800 RPM 56C Frame TEFC C-Face (Rigid Base) 230/460V Leeson Electric Motor # 116746

SKU:
116746
Weight:
43.00 LBS
Shipping:
Free Shipping
$500.35
  • 1.5 hp 1800 RPM, 4.8/2.4 amps 230/460 Volts 60hz. Three Phase Motor

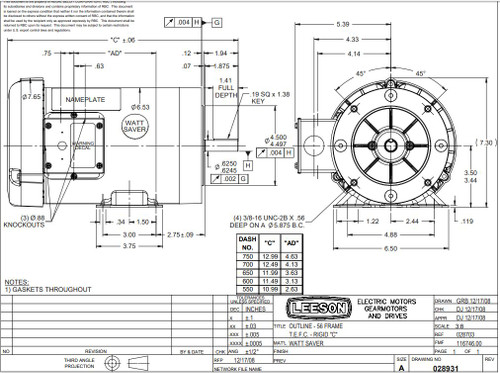

  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6T17FK96C, 116746.00, Replaces 110918.00
