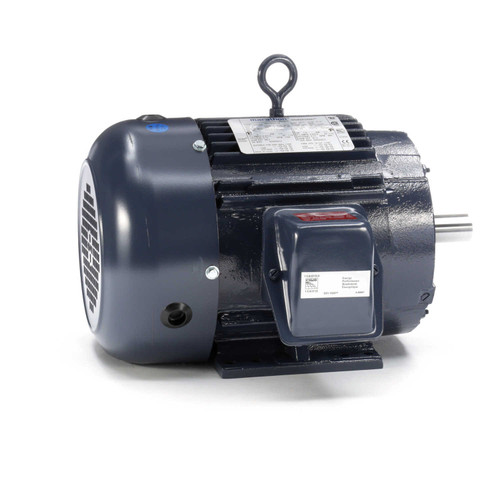

GT1008A Marathon 2 hp 1200 RPM 184T Frame 230/460V TEFC Marathon Electric Motor

Marathon

GT1008A Marathon 2 hp 1200 RPM 184T Frame 230/460V TEFC Marathon Electric Motor

(No reviews) Write a Review

$1,000.27

$856.75

SKU MGT1008

UPC 7.23E+11

Shipping Calculated at Checkout

Compliance Tab /content/product_tabs/p65warnings.html

ON SALE LIMITED TIME DISCOUNT

Voltage 230/460V

Horsepower 2 HP

RPM 1200

Phase Three Phase

Frame 184T

Enclosure TEFC

Hertz 60 Hz

Amperage 6.0/3.0 Amps

Bearings Ball Bearings

Service Factor 1.15

Insulation Class Class F

Mounting Rigid Base

Current Stock:

Qty

Adding to cart… The item has been added

Description
Warranty Information
Specifications

Description

2 hp 1200 RPM, 6.0/3.0 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
Service Factor: 1.15 - overload protection = None
Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Dual Branded Leeson/Marathon Electric Motor
Replaces Models: 199002.00, B199002.00, C184T11FB1, 184TTFCD6076, GT1008A
