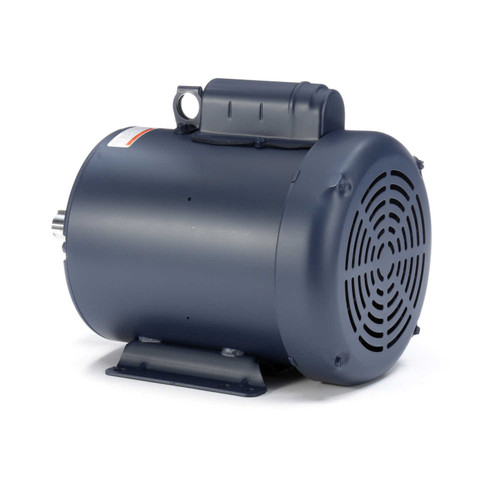

- 2 hp 1725 RPM, 24.8/12.4 amps 115/208-230 Volts 60hz. single Phase Motor
- NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Service Factor: 1.0 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- TEFC = Totally Enclosed Fan cooled.
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate.
C182C17FB11C, 131509.00
