Marathon

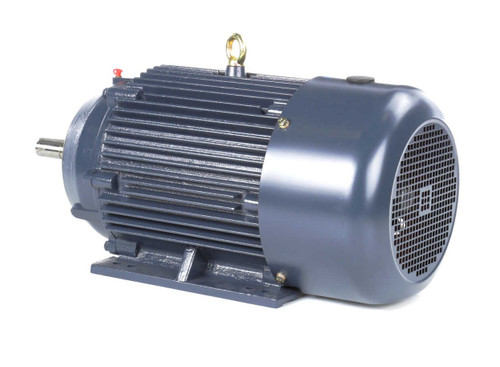

GT3425A Marathon 20 hp 1760 RPM 256JM Frame TEFC 230/460V Marathon Close Couple Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT3425A Marathon 20 hp 1760 RPM 256JM Frame TEFC 230/460V Marathon Close Couple Motor
$3,640.84
$2,896.85
SKU
GT3425A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
230/460V
Horsepower
20 HP
RPM
1760
Phase
Three Phase
Frame
256JM
Enclosure
TEFC
Hertz
60 Hz
Amperage
48.5/24.2 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Mounting
Rigid Base
Duty
Continuous duty
- 20 hp 1800 RPM 256JP Frame, 48.5/24.2 amps 230/460V 60hz Three Phase Motor
- Close Coupled Pump Motor - Rigid Base
- Totally Enclosed Fan cooled (TEFC) - Service Factor = 1.15
- Class F Insulation; Ball Bearings
- Continuous duty
- One Year Manufacture Warranty
Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.
256TTFCD6037, Replaces 194119.00, 194119, B194119.00, B194119; Dayton 29FH46
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 230/460V |
| Horsepower | 20 HP |
| RPM | 1760 |
| Phase | Three Phase |
| Frame | 256JM |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 48.5/24.2 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Duty | Continuous duty |
