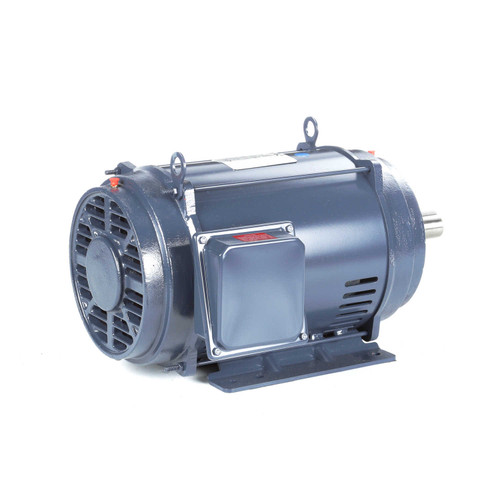

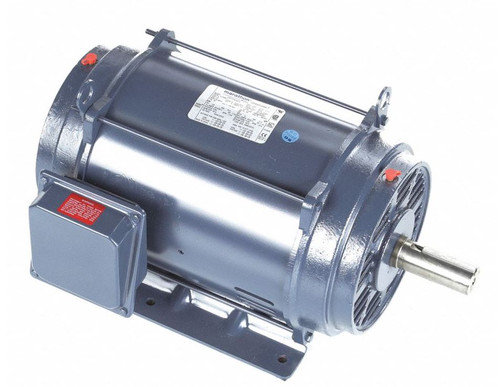

GT0061 Marathon 20 hp 3600 RPM 254T Frame 230/460V Open Drip Marathon Electric Motor

SKU:
GT0061
Availability:
LIMITED STOCK
Weight:
256.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,612.00
Now: $1,183.00
Adding to cart… The item has been added
  • 20 hp 3600 RPM, 48.0/24.0 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 254T Frame Keyed Shaft 1 5/8" Diameter x 4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

254TTDBD6001 Replaces Leeson 170032.60, 199701.00, B199701.00; Dayton 454X54
