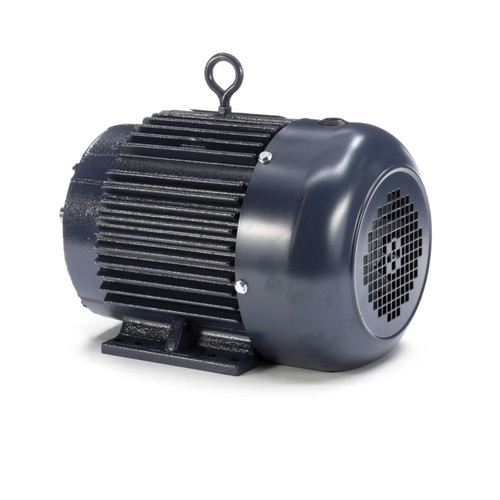

GT1012A Marathon 5 hp 3600 RPM 184T Frame 230/460V TEFC Marathon Electric Motor

GT1012A Marathon 5 hp 3600 RPM 184T Frame 230/460V TEFC Marathon Electric Motor

The GT1012A is a general-purpose, three-phase electric motor designed for a variety of industrial applications. It is dual-branded Leeson/Marathon and replaces models such as 199006.00, B199006.00, C184T34FB1, 184TTFCD6001, and Dayton 44Z316.

Key Specifications

• Horsepower: 5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 12.0/6.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 184T Frame
• Shaft Dimensions: Keyed shaft, 1 1/8" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a wiring diagram on the motor nameplate for easy setup. It is built with Class F insulation and a service factor of 1.15, suitable for demanding operational conditions. The keyed shaft ensures secure coupling with driven equipment.

Cross Reference

• Models: 199006.00, B199006.00, C184T34FB1, 184TTFCD6001, Dayton 44Z316

Warranty

• DATA SHEET
