HD40P4E Nidec | 40 hp 900 RPM 365T Frame 230/460V TEFC Nidec Electric Motor

HD40P4E Nidec | 40 hp 900 RPM 365T Frame 230/460V TEFC Nidec Electric Motor

SKU:
HD40P4E
Availability:
Subject to availability
Weight:
730.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $5,064.00
Now: $4,521.40
Adding to cart… The item has been added
  • 40 hp 900 RPM, 105.0/53.0 amps 230/460 Volts Three Phase Motor

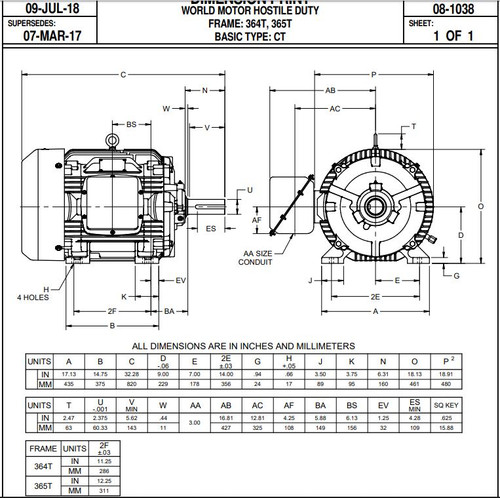

  • NEMA 365T Frame Keyed Shaft 2 3/8" Diameter x 5 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • "C" Dimension = 32.3"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GD75

!
