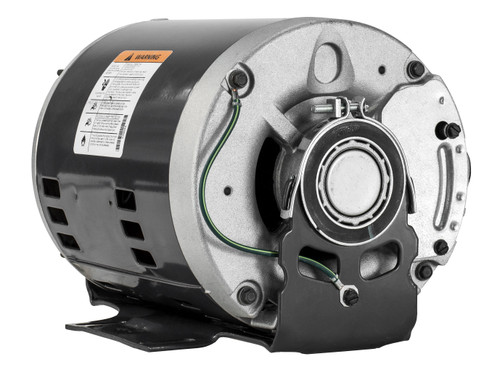

K1410, 3/4 hp 1725 RPM 56 Frame 3 phase 208-230/460V ODP Resilient Mount (Direct Interchange to Marathon K1410)

K1410, 3/4 hp 1725 RPM 56 Frame 3 Phase 208-230/460V ODP Resilient Mount (Direct Interchange to Marathon K1410)

This 3/4 horsepower, 1725 RPM industrial motor is designed for reliable three-phase operation and serves as a direct interchange replacement for Marathon K1410 models. It is suitable for various HVAC and industrial applications requiring a resilient base mount motor with robust performance.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 208-230/460 V, 3-Phase
• Amperage: 2.9/1.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1-7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base mount designed to reduce vibration and noise during operation. It includes an automatic overload protection system and Class B insulation for enhanced durability. The motor is reversible and equipped with a keyed shaft for secure coupling. It is a direct replacement for Marathon 5K46KN4085X and K1410, Leeson A4T17DJ13DP (100908.00), and Century/AO Smith H851 series motors.

Cross Reference

• Marathon 5K46KN4085X, K1410
• Replaces Leeson A4T17DJ13DP, 100908.00
• Replaces Century/AO Smith H851, H851V1, H851V2, H851V3

Warranty

1 Year Manufacturer Warranty
