Marathon

1/3 hp 1800 RPM, 4.0-3.8/2.0-1.9 amps 110-120/200-240 Volts 60hz. Capacitor Start Capacitor Run Motor NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.35, Overload protection = Manual Rigid Base, Reversible, Ball Bearings,...

1/2 hp 1800/1500 RPM, 5.8-5.6/2.9-2.8 amps 110-120/200-400 Volts 60hz. Capacitor Start/Run Motor NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.35, Overload protection = None Reversible, Rigid Base Mount, Ball Bearings, Class B...

3/4 hp 1800 RPM, 9.0-8.8/4.5-4.4 amps 110-120/200-240 Volts 60hz. Capacitor Start Capacitor Run Motor NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.25, Overload protection = Auto Rigid Base, Reversible, Ball Bearings,...

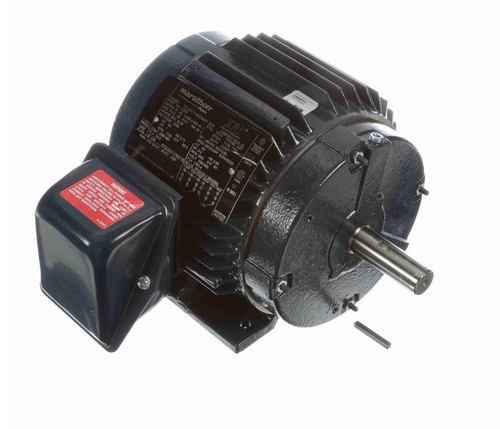

1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 60hz. Three Phase NEMA Cast Iron 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15, Thermal Overload Protection: None Rigid Base, Reversible, Ball Bearings, Class B Insulation 1 Year...

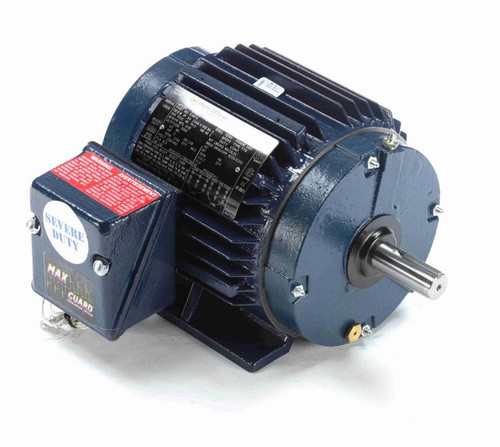

2 hp 1800 RPM, 6.0/3.0 amps 460 Volts 60 Hz. Three Phase NEMA Cast Iron 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15, Overload protection = None Rigid Base, Reversible, Ball Bearings, Class F Insulation 3 Year Manufacture...

  10 hp 1200 RPM, 26.2/13.1 amps 230/460 Volts 60 Hz. 3-Phase NEMA 256T cast iron frame, Keyed Shaft 1 5/8" Diameter x 4" Service Factor: 1.15, Overload protection = Thermostat Rigid Base, Reversible, Ball Bearings, Class F Insulation 1 Year...

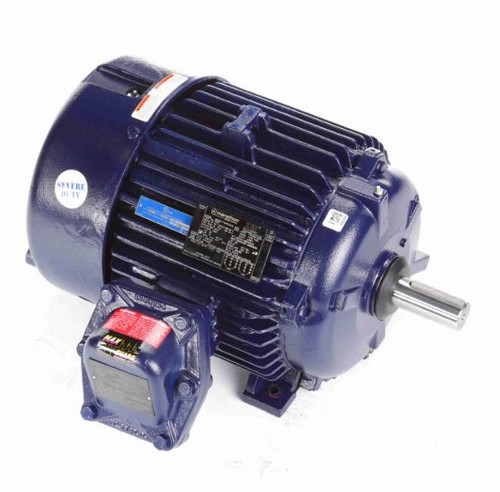

  15 hp 1800 RPM, 37.5/18.8 amps 230/460 Volts 60hz. Three Phase Motor NEMA 254T Frame Keyed Shaft 1 5/8" Diameter x 4" Explosion Proof: Class 1, Group D; Class II, Group F & G Service Factor: 1.0, Class F Insulation Overload Protection:...

  20 hp 1200 RPM, 53.5/26.8 amps 230/460 Volts 60 Hz. 3-Phase NEMA 286T cast iron frame, Keyed Shaft 1 7/8" Diameter x 4 5/8" Service Factor: 1.15, Overload protection = Thermostat Rigid Base, Reversible, Ball Bearings, Class F Insulation 1 Year...

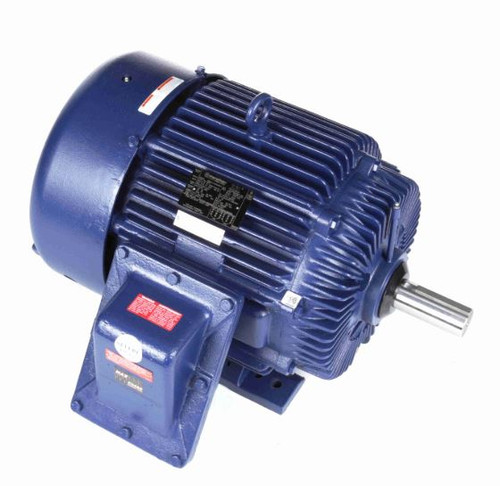

  40 hp 1800 RPM, 95.0/47.5 amps 230/460 Volts 60hz. Three Phase Motor NEMA 324T Frame Keyed Shaft 2 1/8 " Diameter x 4 1/4" Explosion Proof: Class 1, Group C & D; Class II, Group F & G Service Factor: 1.15, Class F Insulation Normally...

  40 hp 1800 RPM, 95.0/47.5 amps 230/460 Volts 60 Hz. 3-Phase NEMA 324T cast iron frame, Keyed Shaft 2 1/8" Diameter x 5 1/4" Service Factor: 1.15, Overload protection = Thermostat Rigid Base, Reversible, Ball Bearings, Class F Insulation BEARING...

  50 hp 1800 RPM, 123.0/61.5 amps 230/460 Volts 60hz. Three Phase Motor NEMA 326T Frame Keyed Shaft 2 1/8 " Diameter x 5 1/4" Explosion Proof: Class 1, Group C & D; Class II, Group F & G Service Factor: 1.15, Class F Insulation Normally...

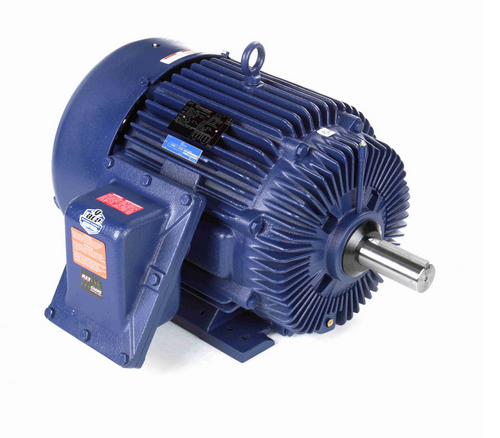

  50 hp 1800 RPM, 123/61.5 amps 230/460 Volts 60 Hz. 3-Phase NEMA 326T cast iron frame, Keyed Shaft 2 1/8" Diameter x 5 1/4" Service Factor: 1.15, Overload protection = Thermostat Rigid Base, Reversible, Ball Bearings, Class F Insulation Bearing...
