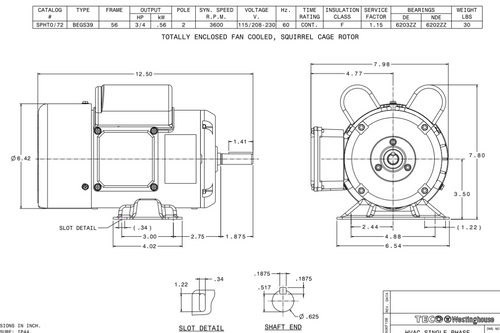

SPHT0/72 TECO-Westinghouse 3/4 HP 3600 RPM 56 Frame 115/208-230V TEFC Rolled Steel 1-Ph Motor

SKU:
SPHT0/72
Weight:
30.00 LBS
Shipping:
Calculated at Checkout
$622.44
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 3/4 hp 3600 RPM, 1-Speed, 6.8/3.4 amps, 115/208-230 Volts 60 Hz.
  • 56 Frame of Rolled Steel, Shaft: 5/8" x 1 7/8" with Slot
  • Rotation = Reversible, Overload Protector: Automatic
  • Service Factor = 1.15, Insulation Class F
  • Ball Bearing, Capacitor Start/Run
  • 1 Year Manufacture Warranty

General purpose motor for HVAC. Totally Enclosed Fan-Cooled (TEFC)
