Motor Discontinued
- 7.5 hp 1800 RPM, 18.6/9.3 amps 230/460 Volts 60hz. Three Phase Motor

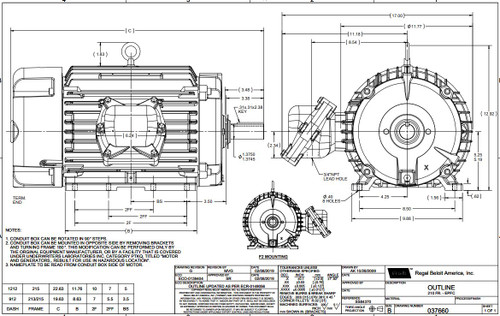

- NEMA 213T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
- Explosion Proof: Class 1, Group D; Class II, Group F & G
- Service Factor: 1.15, Class F Insulation
- Normally closed thermostats (must be connected to control circuit)
- Meets temperature code T3B, Shaft slinger
- TEFC - Explosion Proof Fan cooled
- 1 Year Manufacture Warranty
Explosion Proof for hazardous locations. Underwrites Laboratories and Canadian Standards Association Listed. Explosion proof conduit box included at no extra cost. 1 year manufacture warranty.
Marathon Model: 213TTGCD6526
Replaces U006B, 213TTGS4026
