- 7 1/2 hp 1800 RPM, 20.0-18.2/9.1 amps 208-230/460 Volts 50/60 Hz Three Phase Motor

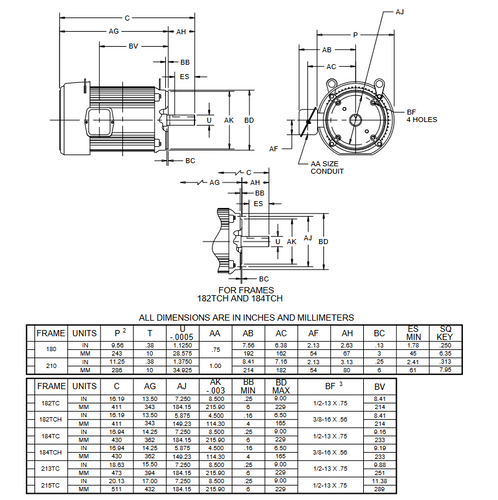

- NEMA 213TC frame Keyed Shaft 1 3/8" Diameter x 3 1/8"
- Service Factor: 1.25, Overload protection = None
- Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
General purpose C- Face motor can be used for many applications requiring a three phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. DK40
