- 1 hp 1075 RPM, 6.6-6.0/3.0 amps, 200-230/460 Volts 60 Hz, 3 phase

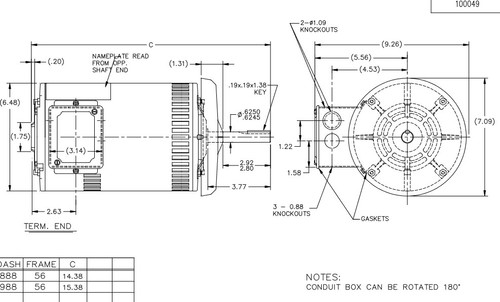

- NEMA 56Y Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 1 speed
- Service Factor = 1.0, Thermal Protection = Auto
- No Base, Reversible, Ball Bearings, Class B insulation
- 1 Year Manufacture Warranty
Condenser motors are used to blow air through outdoor AC condenser units. DPAO = Drip-Proof Air-Over so motor must be in cooling air stream. 056T11D5209. Replaces Brand C motors.
