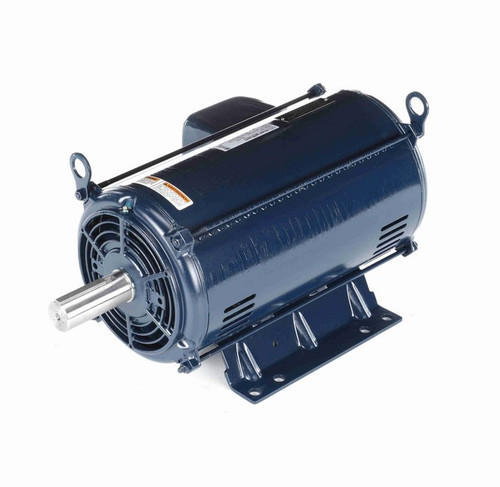

Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor
Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor

Marathon

Y418 Marathon 7 1/2 hp (2 speed) 460V 1800/1200 RPM ODP 254T Frame 3-Phase Variable Torque Motor

(No reviews) Write a Review
$1,527.43
$1,350.95
SKU MY418
Availability Subject to Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 254T
Enclosure ODP
Hertz 60 Hz
Amperage 5.6 Amps
Bearings Ball Bearings
Speeds 2-Speed
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description



  • 7.5 hp 1800/1200 RPM, 10.0, 5.6 amps, 460 Volts 60 Hz, 3-Phase, 2 Winding

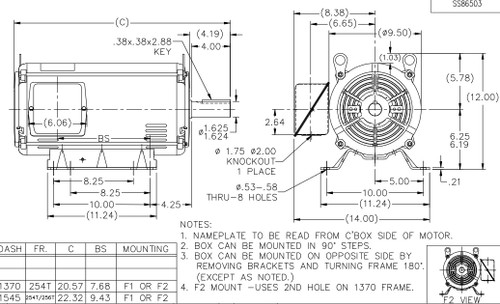

  • NEMA 254T Frame, Shaft 4" x 1 5/8" Diameter, 2 speed
  • Service Factor = 1.15, Thermal Protection = None
  • Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
  • 1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 254TTDX7208

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 254T
Enclosure ODP
Hertz 60 Hz
Amperage 5.6 Amps
Bearings Ball Bearings
Speeds 2-Speed
Insulation Class Class F
Rotation Reversible
Mounting Rigid Base
!
