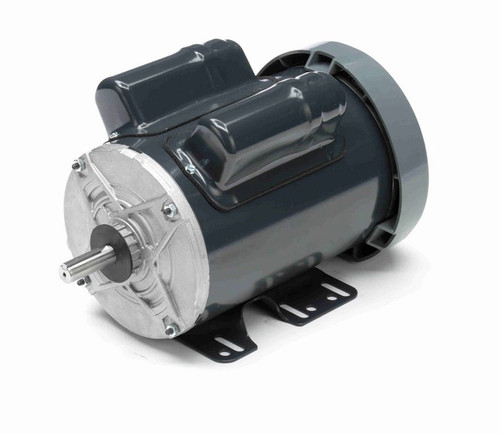

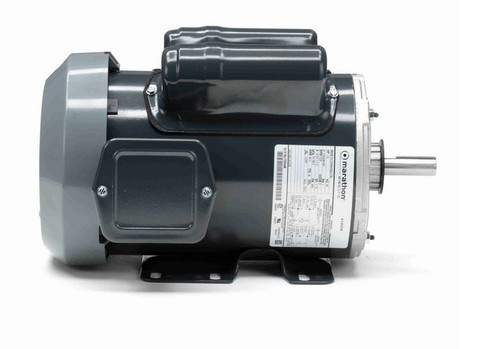

G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

SKU:
G1376
Weight:
44.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $630.00
Now: $554.20
Adding to cart… The item has been added
  • 1 1/2 hp 1800 RPM, 14.5/7.3-7.1 amps 115/208-230 Volts 60hz. Capacitor Start/Run Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled,
Marathon # 5KCR48WN0273. Replaces Leeson 110253.00, C6K17FB9J
