Belt Drive Blower Motors

PTDR3 Direct Drive Blower Assembly – Replacement for Dayton 1TDR3 & 4C447 The PTDR3 Direct Drive Blower Assembly is a high-quality replacement unit engineered for HVAC air movement and pellet stove convection blower applications. It is designed to...

PTDR9 Direct Drive Blower Assembly – Replacement for Dayton 1TDR9 & 4C448 The PEMS PTDR9 is a direct drive blower assembly designed as a high-quality replacement for the discontinued Dayton 1TDR9 and 4C448 models. It is engineered for reliable air...

1/6 hp 1800 RPM (1 speed), 3.6/1.7-1.8 amps 115/208-230V Volts 60 Hz Split Phase Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.35, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class B...

1/2 hp 1800 RPM (1 speed), 6.3-5.6/3.1-2.8 amps 100-120/200-240V Volts 50/60 Hz Capacitor Start/Run Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.25, Overload Protection: Auto Resilient Base Mount, Ball...

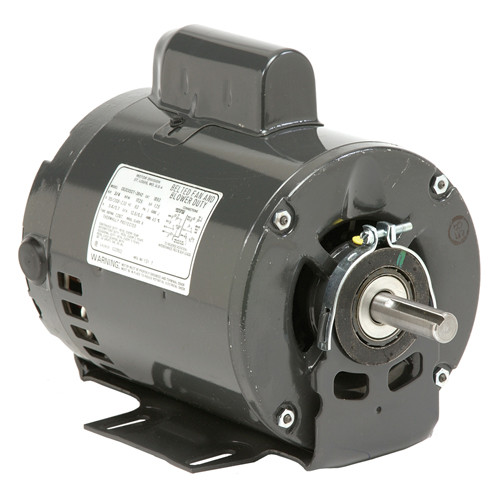

1/3 hp 1800 RPM (1 speed), 6.0/3.0 amps 115/230V Volts 60 Hz Capacitor Start Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.3, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class A Insulation,...

1 1/2 hp 3600 RPM (1 speed), 17.2/9.0 amps 115/208-230V Volts 60 Hz Capacitor Start Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.15, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class B...

1 hp 1800 RPM (1 speed), 14.0/7.0 amps 115/230V Volts 60 Hz Capacitor Start Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.25, Overload Protection: Auto Resilient Base Mount, Sleeve Bearings, Class B...

2 hp 3600 RPM (1 speed), 18.4/10.1-9.2 amps 115/208-230V Volts 60 Hz Capacitor Start Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.2, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class B...

3/4 hp 3600 RPM (1 speed), 9.2/4.6 amps 115/208-230V Volts 60 Hz Capacitor Start Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.25, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class B...

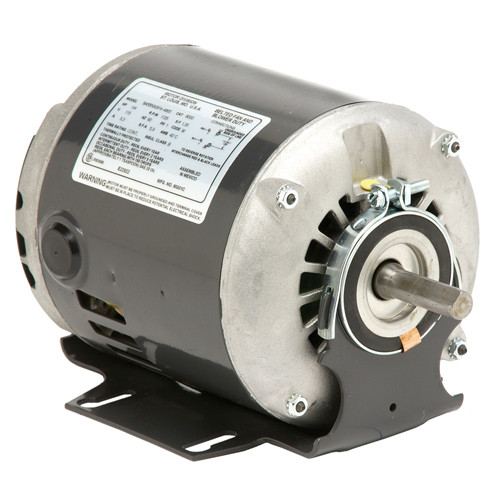

3/4 hp 1800 RPM (2 speed), 11.5/6.4 amps 115V Volts 60 Hz Split Phase Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.0, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class B Insulation, Rev 1...

3/4 hp 1800 RPM (1 speed), 9.2-8.4/4.6-4.2 amps 100-120/200-240V Volts 50/60 Hz Capacitor Start/Run Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.25, Overload Protection: Auto Resilient Base Mount, Ball...

1 hp 1800 RPM (1 speed), 12.3-10.8/6.2-5.4 amps 100-120/200-240V Volts 50/60 Hz Capacitor Start/Run Motor 5.6" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 2" Service Factor = 1.15, Overload Protection: Auto Resilient Base Mount, Ball Bearings,...
