Marathon

1/3 hp 1800 RPM, 3.7 amps, 115 Volts 60 Hz, Split Phase Start - Capacitor Run for higher efficiency NEMA 48Y Frame flat Shaft 1 1/2" x 1/2" Diameter, 1 speed Service Factor = 1.35, Thermal Protection = Auto Resilient Base, Reversible, Ball Bearings,...

1/4 hp 1800/1200 RPM, 5.2/2.8 amps, 115 Volts 60 Hz, Split Phase NEMA 56Z Frame flat Shaft 1 1/2" x 1/2" Diameter, 1 speed Service Factor = 1.0, Thermal Protection = Auto Resilient Base, Reversible, Ball Bearings, Class B insulation 1 Year Manufacture...

1/2 hp 1800/1200 RPM, 7.8/4.8 amps, 115 Volts 60 Hz, Split Phase NEMA 56 Frame keyed Shaft 2" x 1/2" Diameter, 2 speed Service Factor = 1.0, Thermal Protection = Auto Resilient Base, Reversible, Ball Bearings, Class B insulation 1 Year Manufacture...

1 1/2 hp 1800 RPM, 15.2/8.2-7.6 amps 115/208-230 Volts 60hz. Capacitor Start/Run Motor NEMA 145T Frame Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15, Overload protection = Manual Reversible, Rigid Base Mount, Ball Bearings, Class B...

Motor Discontinued 1 hp 1800 RPM, 3.3/1.7 amps 230/460 Volts 60 Hz. 3-Phase NEMA 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.0, Overload protection = Thermostat Rigid Base, Reversible, Ball Bearings, Class B Insulation 1 Year...

2 hp 1800 RPM, 6.0/3,0 amps 230/460 Volts 60 Hz. 3-Phase NEMA 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15, Overload protection = Thermostat Rigid Base, Reversible, Ball Bearings, Class F Insulation 1 Year Manufacture...

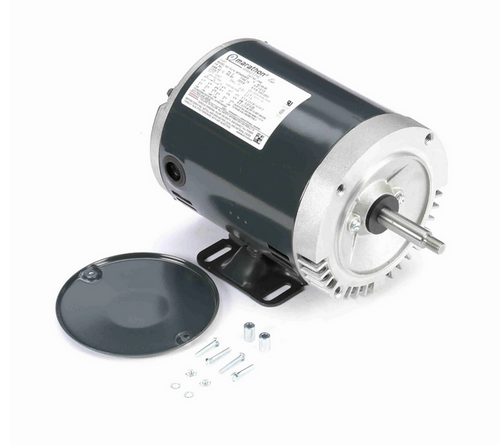

1/2 hp 3600 RPM, 2.2-1.9/1.1 amps, 208-230/460 volts, 3 phase NEMA 56J Frame, 5'8" dia. by 1-5/8" long threaded stainless steel shaft, 60 Hz Service Factor: 1.6, Overload protection: None Rigid base, Reversible rotation, Ball Bearings; Class B...

1 hp 3600 RPM, 3.0/1.5 amps, 230/460 volts, 3 phase NEMA 56J Frame, 5'8" dia. by 1-5/8" long threaded stainless steel shaft, 60 Hz Service Factor: 1.15, Overload protection: None Rigid base, Reversible rotation, Ball Bearings; Class B Insulation 1 Year...

1 1/2 hp 3600 RPM, 4.2/2.1 amps 230/460 Volts 60 Hz. Three Phase NEMA Rolled Steel 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload protection = None Rigid Base, Reversible, Ball Bearings, Class B Insulation 3 Year Manufacture...

2 hp 1800 RPM, 2.4 amps 575 Volts 60 Hz. Three Phase NEMA Rolled Steel 56H frame, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload protection = None Rigid Base, Reversible, Ball Bearings, Class B Insulation 3 Year Manufacture...

1 hp 1800 RPM, 3.4-3.6/1.8 amps 208-230/460 Volts 60 Hz. Three Phase NEMA Rolled Steel 56HZ frame, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload protection = Auto Rigid Base, Reversible, Ball Bearings, Class B Insulation 3 Year...

1/2 hp 3600 RPM, 1.8/0.9 amps 230/460 Volts 60 Hz. Three Phase NEMA Rolled Steel 48 frame, Keyed Shaft 1/2" Diameter x 1 1/2" Service Factor: 1.25, Overload protection = None Rigid Base, Reversible, Ball Bearings, Class B Insulation 3 Year Manufacture...
