Refrigeration Motors

Model 252 Century 25W Unit Bearing Refrigeration Motor 1500 RPM 230V This Model 252 Century refrigeration motor is a 25-watt unit bearing motor designed for refrigeration applications. It replaces Dayton 4M156, ESP-L25EM2, and ESPL25EM2 models, providing...

Replaces 14, 15 & 16 Watt low effiency shaded pole motors Clock wise rotation opposite shaft end 3 rear mounting holes Rain Shield, Cast Iron 15" Leads, Lyall Plug Low Temp Oil UL approved Energy Savings ECM Design Break through motor design offers...

P3730 - 1/2hp 1075 RPM Condenser Fan Motor - Replaces EM3730F The PEMS P3730 is a direct replacement condenser fan motor designed to substitute Century EM3730F and compatible models. It is ideal for HVAC condenser fan applications requiring reliable...

X086 Marathon 1/3 hp 208-230V 825 RPM OPAO 48Z Frame Condenser Fan Motor This Marathon condenser fan motor is designed for use in air conditioning condenser units, typically installed outdoors. It replaces standard 1/3 hp motors and is suitable for...

X432 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO 56Y Frame Condenser Fan Motor This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor with...

1/4 hp 1075 RPM, 1.4 amps, 208-230 Volts 60 Hz, Permanent Split Capacitor (PSC) NEMA 48Z Frame Keyed Shaft 1/2" Diameter x 6" Service Factor = 1.0, Thermal Protection = Automatic No Base, Reversible, Ball Bearings, Class B insulation 1 Year Manufacture...

1/5 hp 1075 RPM, 0.8 amps 575V Volts 60 Hz PSC Motor NEMA 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 2 1/2" Overload Protection: Auto Stud Mount, Ball Bearings, Class B Insulation, CW lead end 1 Year Manufacture Warranty Condenser Fan...

1/2 hp 1075 RPM, 1.0 amps 575V Volts 60 Hz PSC Motor NEMA 5.6" Dia. Frame, Rolled Steel, Flat Shaft 1/2" Diameter x 4 1/2" Overload Protection: Auto Stud Mount, Ball Bearings, Class B Insulation, Rev 1 Year Manufacture Warranty Condenser Fan Motor...

1/2 hp 1075 RPM 1-Speed 575V 1.3 amps Shaft 1/2" x 5" Rotation: Reversible 5.6" Diameter Motor case length 5.9" Sleeve bearings 10MFD 370V Capacitor REQUIRED (Our Part #10DV) 1 Year mfg warranty Permanent Split Capacitor Motor. Automatic Overload...

1/2 hp 575 RPM 1-Speed 208-230/460V 3.2/1.6 amps Three Phase Shaft 5/8" x 2.5"  Rotation: Reversible 6.3" Diameter Motor case length 11.0" Ball bearings Rigid Mount Includes water slinger ring 1 Year mfg warranty Three Phase Motor. Continuous...

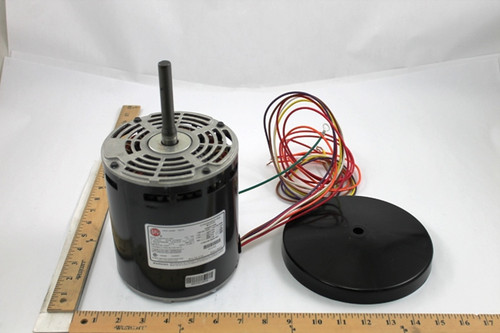

1 hp 1140 RPM, 1.4 amps 575V Volts 60 Hz 3-Phase Motor 5.6" Dia, Rolled Steel, Double Flat Shaft 7/16" Diameter x 4" long Service Factor = 1.0, Overload Protection: Auto Band Mount, Ball Bearings, Class F Insulation, Rev 1 Year Manufacture...

1/2 hp 1075 RPM 1-Speed 575V 1.9 amps Shaft 1/2" x 3" Rotation: CW shaft end 5.6" Diameter Motor case length 5.812" Ball bearings Lug Mount (Vertical shaft up) Rain shield; Conduit box included 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV) 1 Year mfg...
