Single Phase

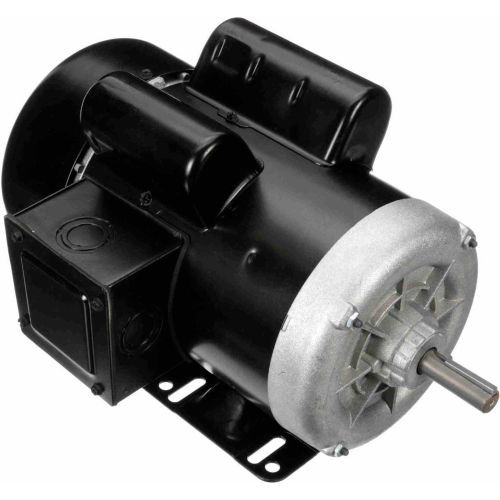

T1C2Z Nidec 1 hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor This Nidec 1 hp motor is designed for applications requiring high starting torque, such as air compressors, pumps, and conveyors. It is a capacitor...

T2CM2JH Nidec 2 hp 1800 RPM 115/208-230V 56H Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor This Nidec 2 hp motor is designed for applications requiring high starting torque, such as air compressors, pumps, and conveyors. It serves as a reliable...

1/2 hp 1800 RPM, 6.3-5.6/3.1-2.8 amps 100-120/200-240 Volts 60 Hz Capacitor Start/Run Motor NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.25 Overload protection = None Rigid Mount, Ball...

1/2 hp 1800 RPM, 6.3-5.6/3.1-2.8 amps  100-120/200-240 Volts 60 Hz Cap Start Single Phase Motor NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.25 Overload protection = Auto C-Face Mount, Ball Bearings, Class F...

3/4 hp 1800 RPM, 9.2-8.4/4.6-4.2 amps  100-120/200-240 Volts 60 Hz Cap Start Single Phase Motor NEMA 56C Rolled Steel Frame, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.25 Overload protection = Auto C-Face Mount, Ball Bearings, Class B...

1/3 hp 1800 RPM, 7.4 amps 115 Volts 60 Hz Split Phase Motor NEMA 48 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1/2" Diameter x 1 1/2" Service Factor: 1.35 Overload protection = None Rigid Mount, Ball Bearings, Class A Insulation,...

1 hp 1800 RPM, 14.4/7.2 amps 115/230 Volts 60 Hz Capacitor Start/Run Motor NEMA 182T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.25 Overload protection = None Resilient Mount, Ball Bearings,...

2 hp 1800 RPM, 24.6/12.3 amps 115/230 Volts 60 Hz Capacitor Start/Run Motor NEMA 213T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8" Service Factor: 1.15 Overload protection = None Resilient Mount, Ball Bearings,...

1 1/2 hp 1800 RPM, 22.0/11.0 amps 115/230 Volts 60 Hz Capacitor Start/Run Motor NEMA 184T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None Resilient Mount, Ball...

3 hp 3600 RPM, 32.0/16.0 amps 115/230 Volts 60 Hz Capacitor Start/Run Motor NEMA 182T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None Resilient Mount, Ball Bearings,...

5 hp 1800 RPM, 22.0 amps 230 Volts 60 Hz Capacitor Start/Run Motor NEMA 213T Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8" Service Factor: 1.15 Overload protection = None Resilient Mount, Ball Bearings, Class F...

5 hp 1800 RPM, 22.0 amps 230 Volts 60 Hz Capacitor Start/Run Motor NEMA 215 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8" Service Factor: 1.15 Overload protection = None Resilient Mount, Ball Bearings, Class F...
