Vector Duty Motors

    2 hp 1800 RPM, 5.3/2.7 amps 230/460 Volts 60 Hz Three Phase Motor    NEMA 145TC Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 7/8" Diameter x 2 1/4"    Service Factor: 1.15 Overload...

2 hp 1200 RPM, 6.2/3.1 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 184TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

1 1/2 hp 3600 RPM, 3.9/1.9 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 143TC Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

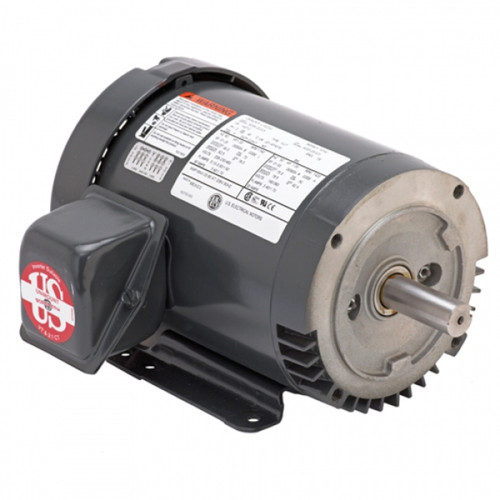

1 1/2 hp 1800 RPM, 4.1/2.1 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 145TC Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

1 1/2 hp 1200 RPM, 4.5/2.2 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 182TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings,...

3/4 hp 1800 RPM, 2.6/1.3 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 56C Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.25 Overload protection = None C-Face Mount, Ball Bearings, Class F...

3 hp 3600 RPM, 8.2/4.1 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 182TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

3 hp 1800 RPM, 7.8/3.9 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 182TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

5 hp 3600 RPM, 12.3/6.1 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 184TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

5 hp 1800 RPM, 12.7/6.3 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 184TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

5 hp 1200 RPM, 14.2/7.1 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 215TC Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings, Class F...

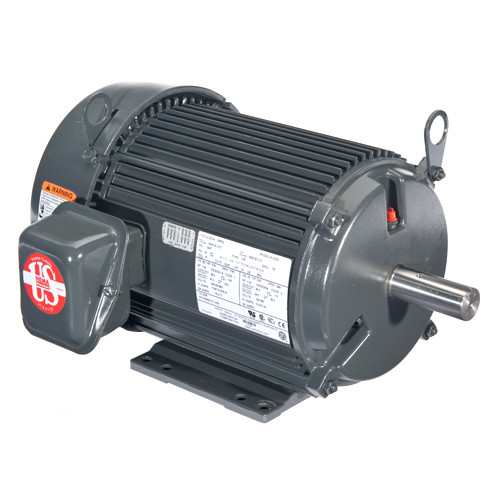

7 1/2 hp 3600 RPM, 17.9/9.0 amps 230/460 Volts 60 Hz Three Phase Motor NEMA 213T Extruded Aluminum Frame with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8" Service Factor: 1.15 Overload protection = None C-Face Mount, Ball Bearings,...
