Condenser Fan Motors

1/10 hp, 1100 RPM, 0.8 amps, 208-230V, 1-Speed Rotation = CW lead end; Shaft 1/2" x 1.6"; 40° Ambient Temp Totally Enclosed Air Over (TEAO); Sleeve Bearings; Body diameter 5-5/8" Motor case length 5"; Stud Pattern 3-5/8"x 3-5/8" 5MFD 370V...

1/6 hp 1500 RPM 1-speed 208-230V 0.8 amps Shaft 1/2" x 1.6  Rotation: CCW shaft end; 5-5/8" diameter Motor case length 4.5" Ball Bearings 38" Leads 5MFD 370V Capacitor REQUIRED (Our Part # 5DV) 1 Year Manufacture Warranty. Permanent Split...

1/3 hp 1075 RPM 1-Speed 208-230V 2.0 amps Shaft 1/2" x 3.25" Rotation: Reversible 5.6" Diameter Motor case length 4.062" Sleeve bearings 4 Holes in shell for Rheem mount Slinger ring 5MFD 370V Capacitor REQUIRED (Our Part #5DV) 1 Year mfg...

1819H Nidec 1 1/2 hp 1140 RPM 208-230/460V 56Z Frame (No Base) 1-Speed OAO 3-Phase Commercial Motor This Nidec commercial motor is a 1 1/2 horsepower, 3-phase motor designed for condenser fan applications in higher-than-normal temperature environments...

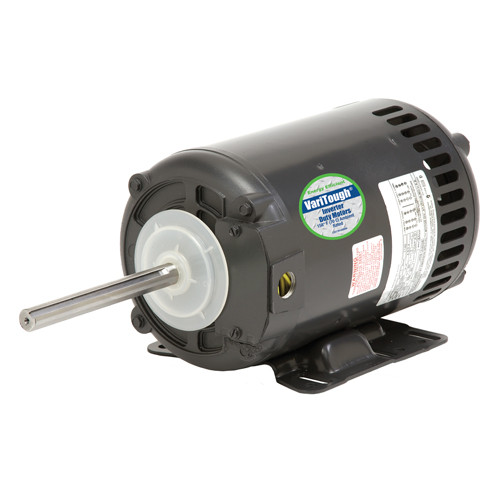

1833VG Nidec 1 hp 850 RPM 208-230/460V 56YZ Frame (Rigid Base) 1-Speed OAO 3-Phase Inverter Motor This Nidec 1 hp, 850 RPM motor is designed for commercial condenser fan applications utilizing a variable frequency drive. It serves as a reliable...

1/8 hp 825 RPM 1-Speed 200-230V 0.74 amps Shaft 0.5" x 1.875" Rotation: CW shaft end 5.6" Diameter Motor case length 4.36" Ball bearings Stud Mount, Shaft up or horizontal 5MFD 370V Capacitor REQUIRED (Our Part #5DV) 1 Year Mfg warranty Permanent...

5462 Nidec | 1/3 hp 1075 RPM 2-Speed 208-230V; 5.6" Condenser Motor This 1/3 horsepower, 2-speed condenser motor is designed for HVAC applications requiring reliable performance and reversible rotation. It is a direct replacement for compatible Rheem...

1 hp 1140 RPM 200-230V/460 6.0/3.0 amps Three Phase 1.0 Service Factor Shaft 5/8" x 3" Rotation: Reversible 6.5" Diameter Motor case length 10.6" Ball Bearings Vertical Shaft Up, belly band  Open Air Over Case 1 Year mfg warranty Three Phase Motor...

5441H Nidec | 1/4 hp 1075 RPM 1-Speed 208-230V; 5.0" Condenser Motor The 5441H Nidec condenser motor is a 1/4 horsepower, single-speed motor designed for outside air conditioning condenser fan applications. It serves as a reliable replacement motor...

5462H Nidec Rescue 1/3 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 2-Speed TEAO Condenser Motor This 1/3 horsepower condenser fan motor is designed for HVAC applications requiring reliable two-speed operation. It serves as a direct replacement for...

6127 Nidec 1/3 HP 1625 RPM 1-Speed 208-230V 5.6" Blower Motor This 1/3 horsepower blower motor operates at 1625 RPM and is designed for HVAC applications requiring a reliable, continuous-duty motor. It serves as a suggested aftermarket replacement for...

X412 Marathon 1/4 hp 208-230V 1075 RPM TEAO 48Y Frame Condenser Fan Motor This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor for 1/4...
